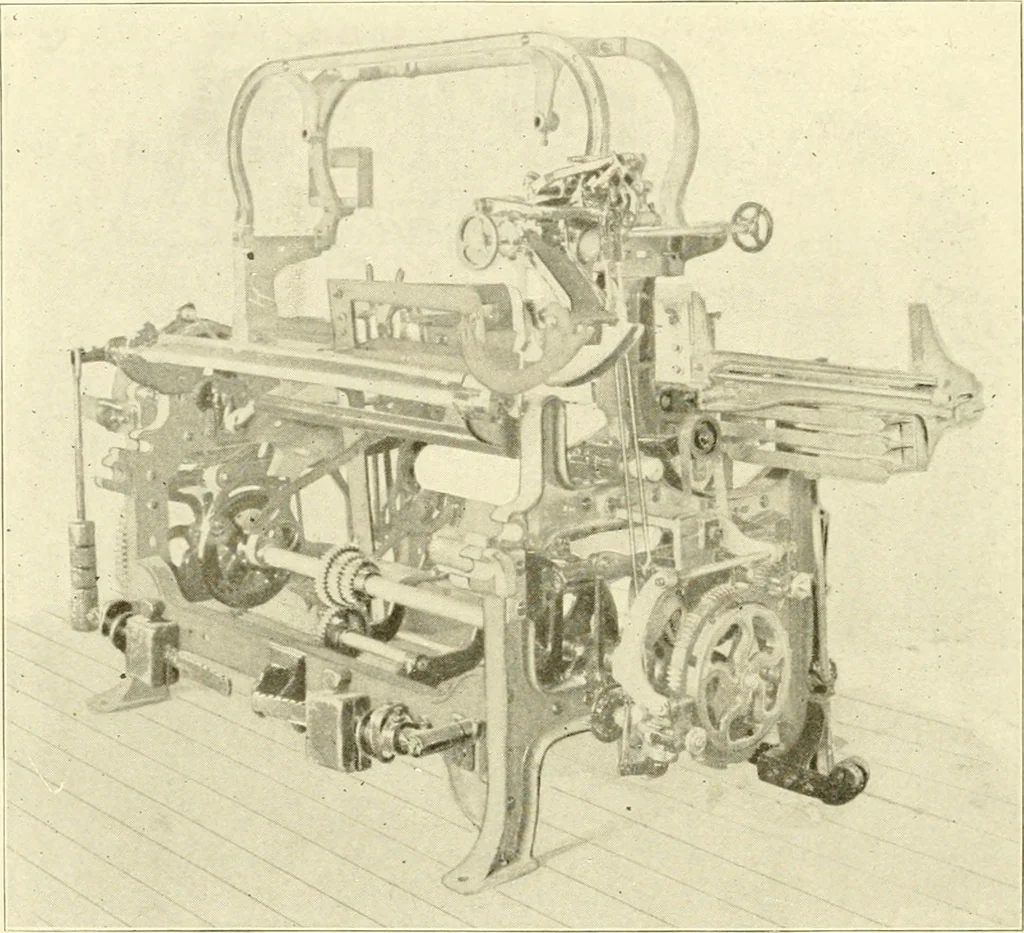

f a revolution of the pick cam 191 178 WEAVING shaft, equal to a full revolution of the crank shaft, and the smallercam has one-half the d\\ell of tlie larger. There are two separateelbow levers, C and I), between which the cams revolve, botlibeing pivoted on the same stud, E, which is attached to… … Fig 115. Cronipton Gingham Loom. Upper elbow lever, C, is actuated by the large cam, and carries,fixed on a stud, H, at the elbow, a spring clamp wliich also grips astud fixed in the upper part of the lower lever, 1), at J. As thecams revolve, the large one coming in contact with the upper…
