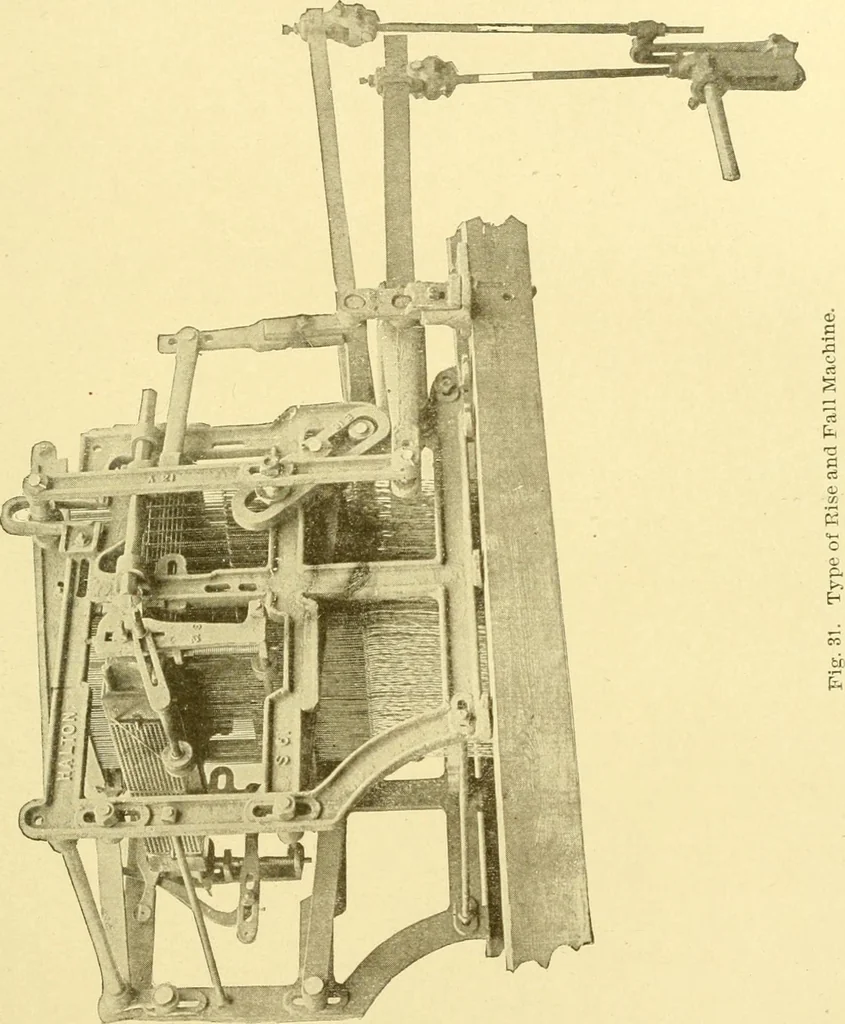

308 JACQUARD MACHINES 31 In Fig. 30 the pulley A is supported on a shaft in the sameposition as the gear for the rack motion, and to the pulley a stripof belting B is attached, each end being fixed to the cross rail of … the griffe at C. The belt motion is a simple arrangement, but thegriffe must act freely and perfectly straight or the grifPe will notdescend low enough to allow the hooks to be pressed off by thecylinder. 309 32 JACQUARD MACHINES THE RISE AND FALL OR CLOSE SHED MACHINE The illustration, Fig. 31,…
