Cyclopedia of textile work : a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1911)
American School (Lansing, Ill.) · Chicago : American school of correspondence · leaf 130

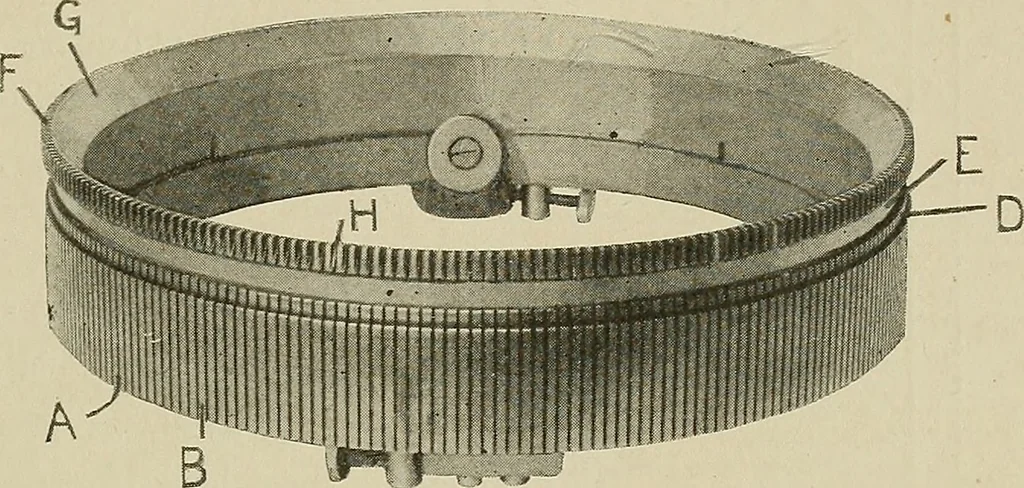

Fig. 39. Latch Needle Circular Knitting Machine.Revolving Needle Cylinder. 110 KNITTING 97 is arranged. On this cam ring are secured four studs D, to supportthe dial arch E for holding up the cap, on which is arranged the camsystem for the radial needles, and the dial. The bobbins are heldon a… … Fig. 40. Needle Cylinder. To the right housing plate Y is secured the driving shaft bracket I,which makes the outer bearing for the driving shaft, and on the shaftJ are tight and loose pulleys between the bearings. Outside the
