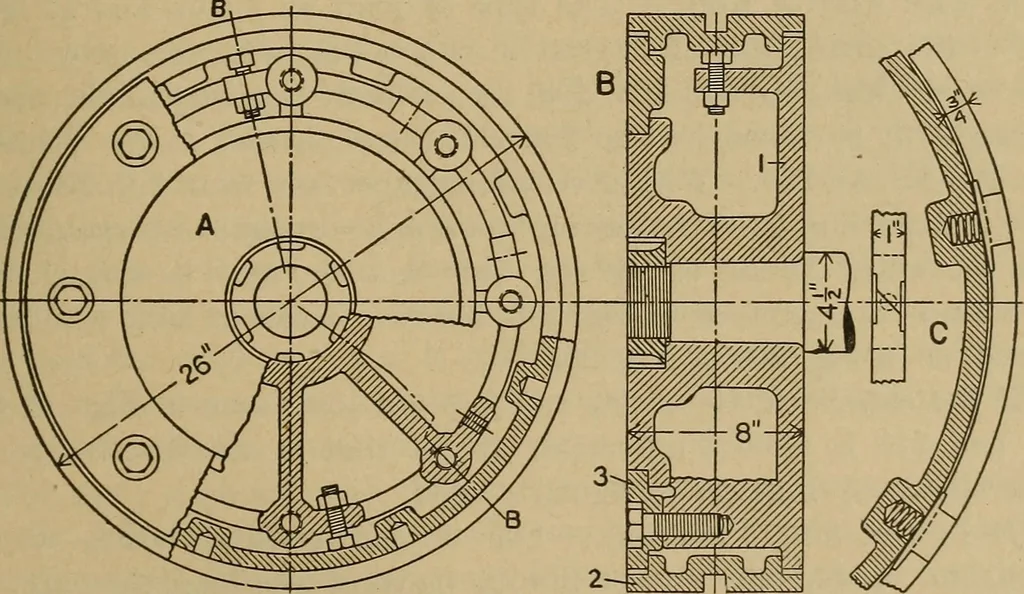

Fig. 205. — Locomotive Pistons of the Solid-disc Type. Scale 1 to 12. to the shape of the piston surface, and thus keep down the clearancevolume. In Corliss engines, the built-up piston is usual, exemplified in Fig.206. There is first the ribbed body or spider, fast on the rod. The … Fig. 206. — Piston for Corliss Engine in Fig. 3. Scale 1 to 12.1. Body or spider. 2. Bull ring. 3. Follower plate. face or rim is formed by the bull ring, which can be adjusted on thebody by set screws so as to get the piston rod into a truly axial positionand keep it there as against wear of the…
