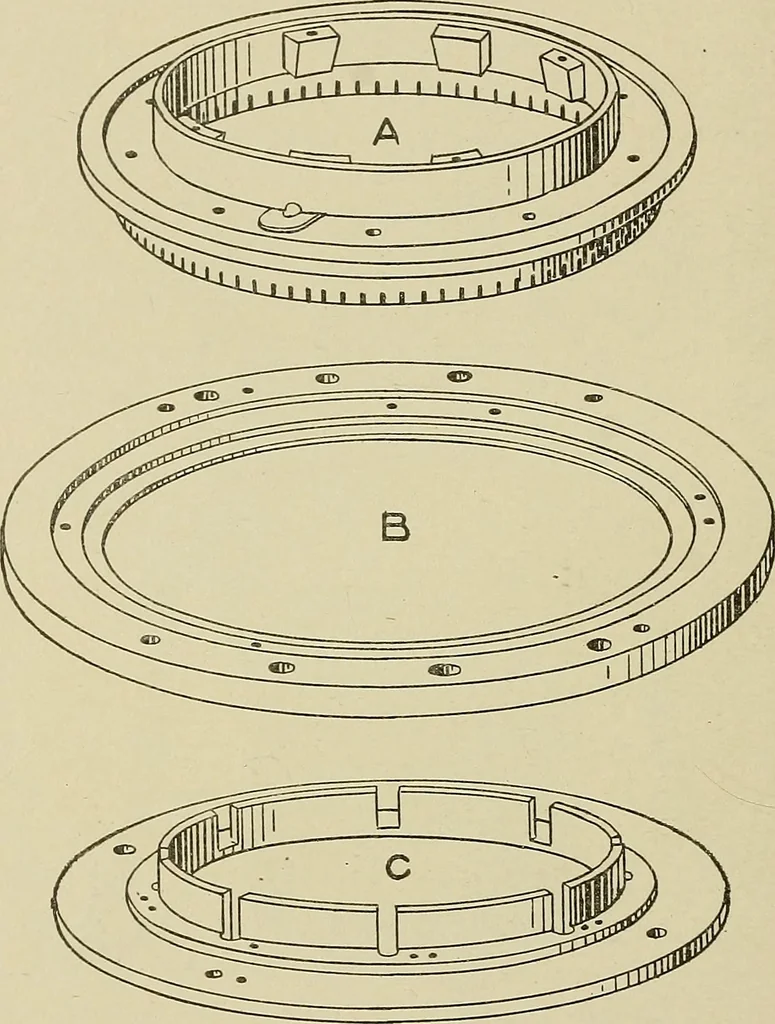

to tighten or shorten. The dial cam is adjusted in asimilar manner, by means of the set screw F^°, shown in Fig. 45.Turn the set screw in to lengthen, and out to shorten or tighten thestitch. 181 118 KNITTING The stitch is also adjusted by raising or lowering the dial andcap by means of the dial… … Fig. 58. A, Gear Ring. B, Head Ring. C, Cam Ring. To Remove a Section of Cylinder or Dial. The upper partof the cam ring, or what is generally termed the section ring,Figs. 39 and 41, and also the cylinder gib, is divided into as manysections as there are feeds on the machine, and each section is…
