Cyclopedia of textile work : a general reference library on cotton, woollen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1907)
Chicago : American school of correspondence · leaf 147

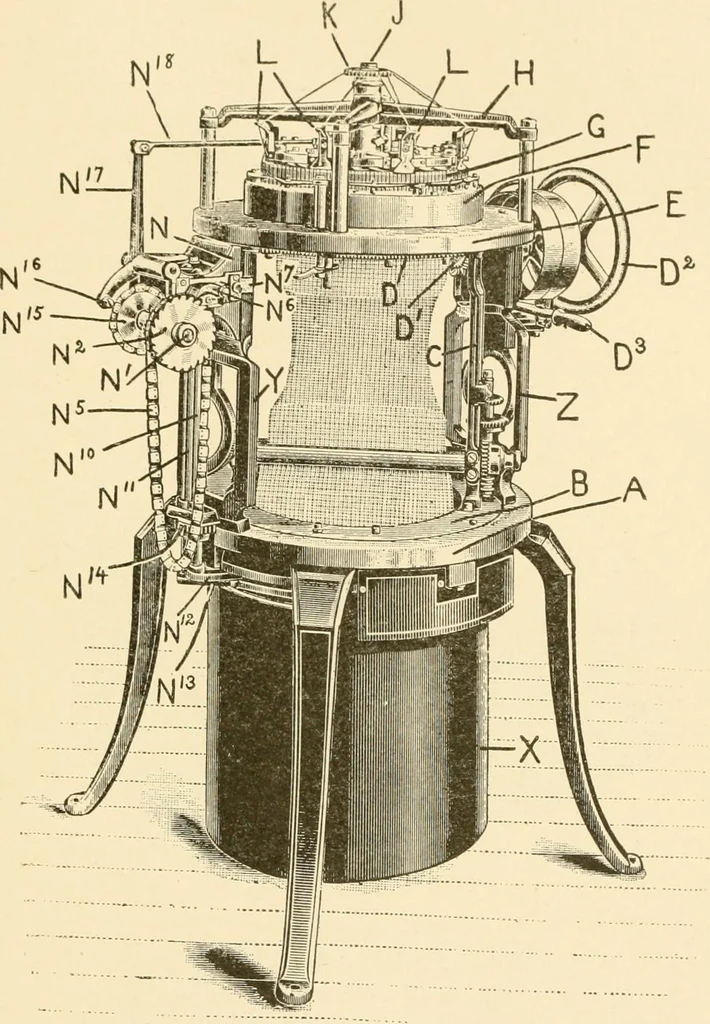

sured off should beas long as convenient, and the length accurate at the same tension.To Shorten or Lengthen the Stitch. A small set screw B,Figs. 41 and 42, bears against the stud which holds the stitch camin the cam ring. By means of this set screw, the stitch cam may be 180 KNITTING 117 adjusted… … Fig. 57. McMichael and Wildman-Machine. Revolving Needle Cylinder. and turn it out to tighten or shorten. The dial cam is adjusted in asimilar manner, by means of the set screw F, shown in Fig. 45.Turn the set screw in to lengthen, and out to shorten or tighten thestitch. 181 118 KNITTING The…
Textile industry · Textile fabrics
