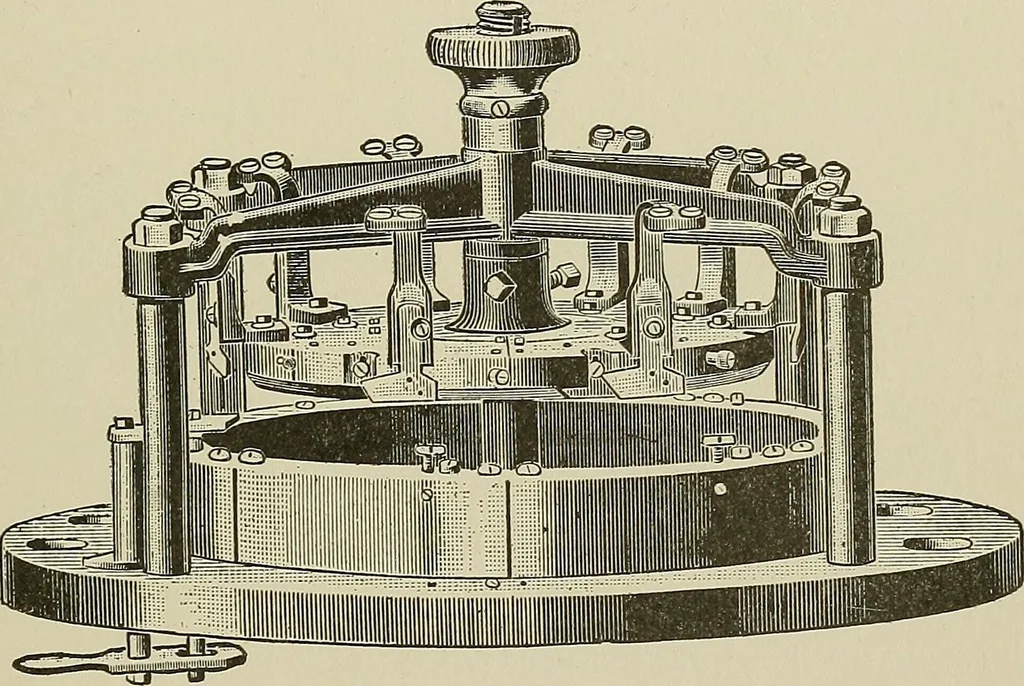

in the right housing plate, and at the outer end in a bear-ing in the bracket D* fixed to the same housing. The power is trans-mitted by a belt, which may be shipped from one pulley to the otherby means of the shipper D^ The hand wheel D is fixed to the drivingshaft for use when the needle cylinder… … Fig, 68. Body Machine Head. operating the movable cams of the cam dial plates, to move the needlesfarther out, or to draw them in, to narrow or widen the fabric forshaped goods. In the bracket N, fixed to the left housing, is a shaftN^ on one end of which is fixed a ratchet wheel N^ and back of…
