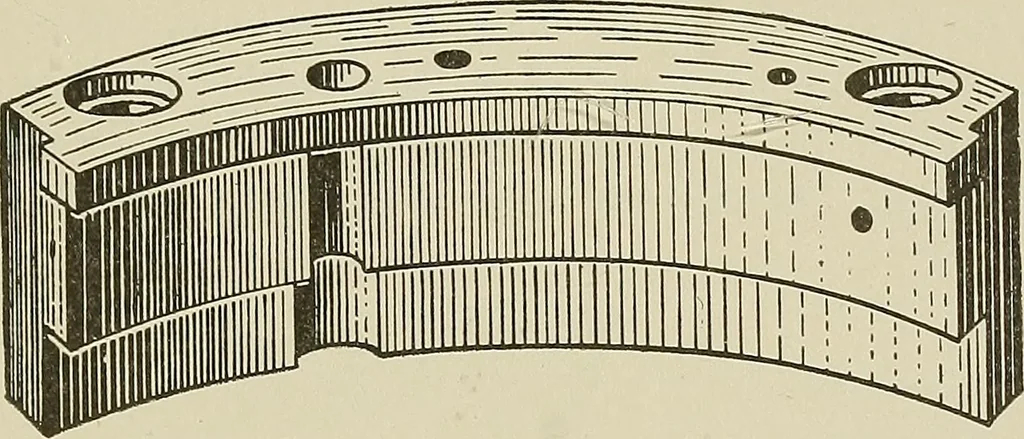

late B andas it turns, the pinion gear fixed to the lower end of the worm shaftand meshing into the stationary internal gear (Parts shown in Fig.64), causes the worm 0^ Fig. 61 (also shown at Fig. 65), to revolveand impart motion to the fluted take-up rolls 0^ and 0. These arejournaled in the… … Fig. 69. Cam Ring Section. take-up roll 0^ is geared at 0*^ to the driver roll 0^ at the opposite endfrom the worm gear, Fig. 66, and is journaled at each end in slidingblocks, guides being provided for that purpose in the take-up stand-
