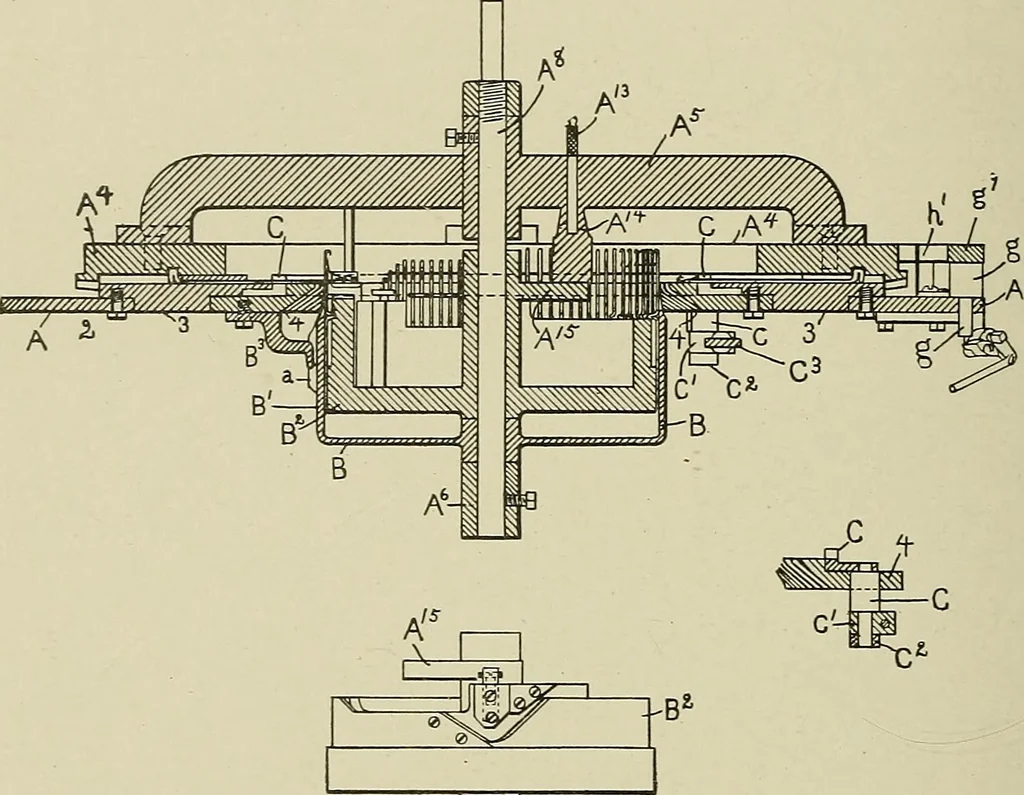

the 173 158 KNIITING extension AS the gear being engaged and rotated by a worm d^,carried by a sleeve d*, fast on the continuously rotated driving shaftA^ (See also Fig. 93). The worm gear forms part of a clutch mechanism illustratedat Fig. 66 (Part II), so arranged that during the regular… … Fig. 94. Sectional View of Head. lets the worm wheel start the shaft d and cam e^^ at such times as pre-determined to rack or shog the stitch, by deflecting the needles alittle back of their hooked ends, putting them a little to one side oftheir true radial positions, so that they may, for some…
