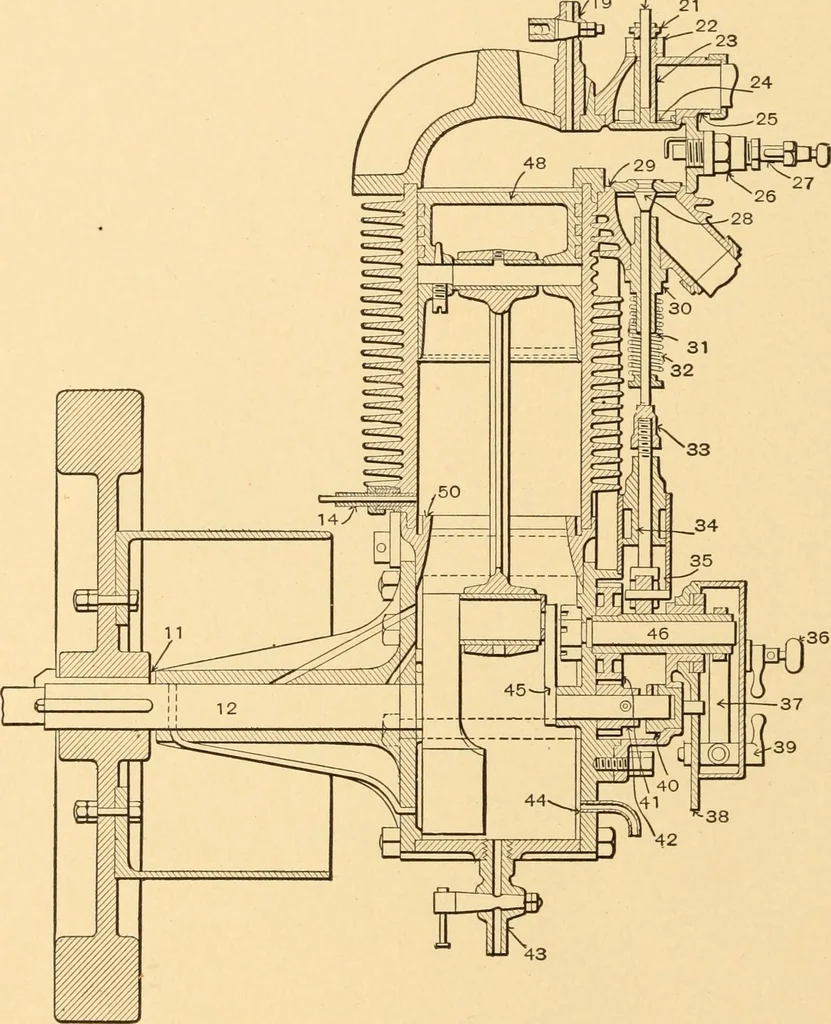

charge of oil. The hit or miss is regulated bythe lifting of the pick blade on the incHne of the wedge beneath thecollar of the pick blade, which is made adjustable by the nut and screwon the pick blade. The wings of the conical vaporizer are shown inthe section. Il6 EXPLOSIVE MOTOR POWER AND… … reducing-gear shaft, 46, carrying the cam-roller movement for theexhaust valve, the spark-breaker cam, and contact bar, 37, and theregulating screw, 39. The atomizer or vaporizer connects with the airinlet at 24, the air cock for starting at 19. The other parts are self-explained. EXPLOSIVE MOTOR…
