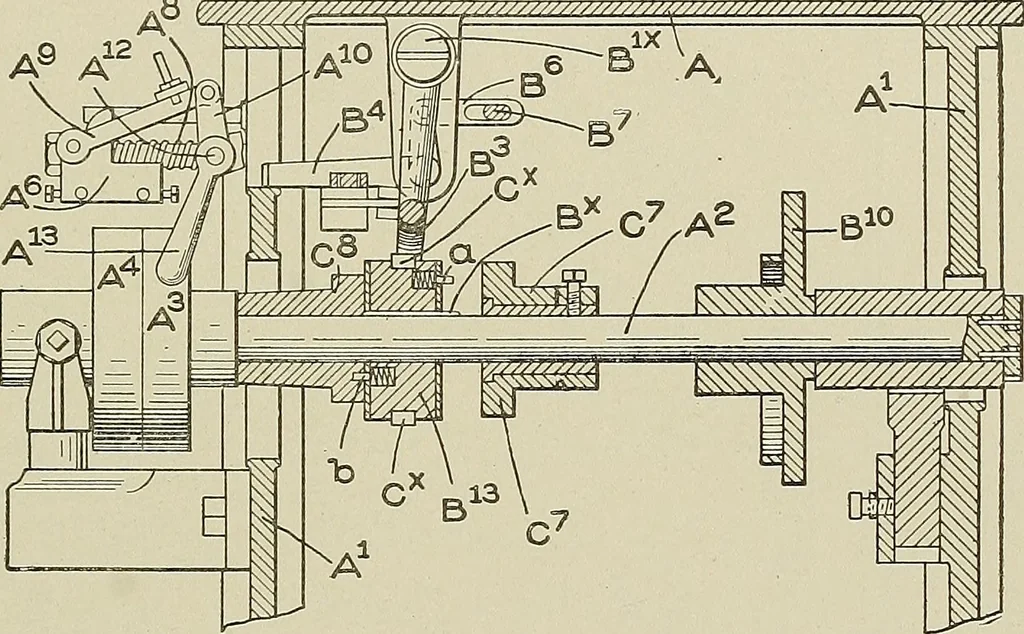

s of the hub. A shortdistance from the hub is a loose gear C^ mounted on a flanged bushingand collar arrangement secured to the shaft by a set screw and pro-vided with a hole in the clutch face to receive the pin. At the oppositeside of the hub and loose upon the shaft, is the pinion C* which… … Fig. 137. Method of Driving. The gear O has a crank pin (See Figs. 138 and 139) providedwith a link C^° which, at its opposite end, is attached to a stud on thesegment gear C^^ pivoted at O^, the segment engaging the loose gearO and oscillating it continuously. When the pin b of the clutch hubB^^…
