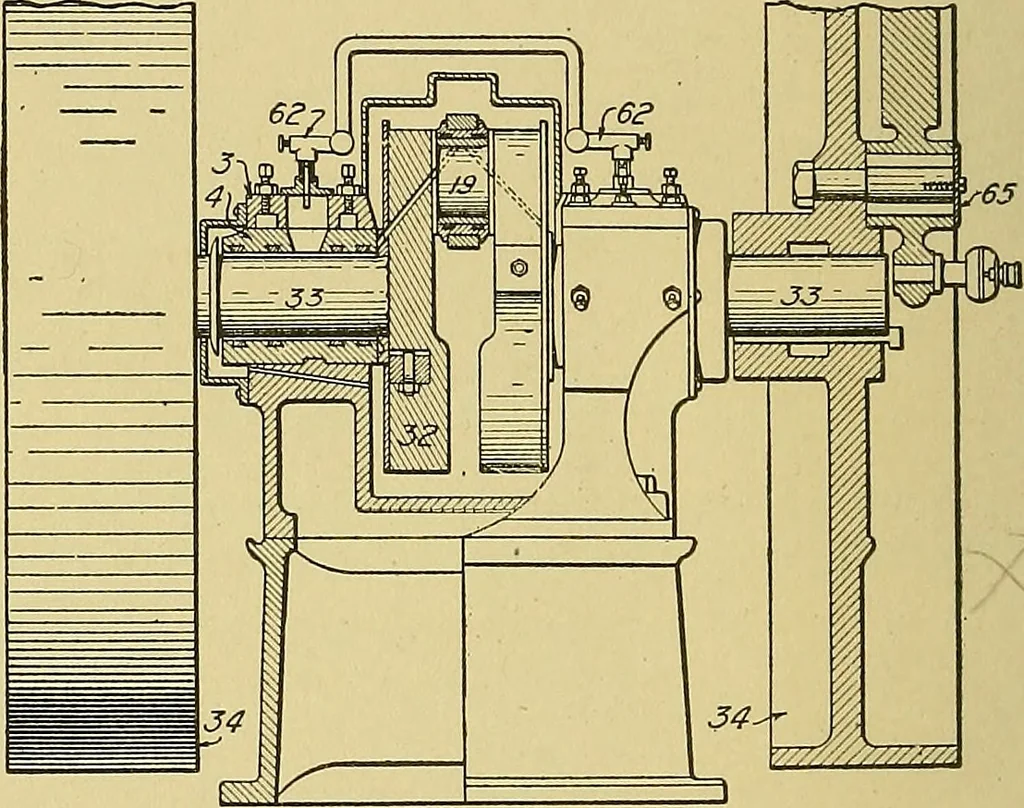

ly cast integral with the frame.Provision is always made for adjustments nec«sitated by any wearof the frame or parts attached thereto. It is to be noted in Fig. 6,that the frame crank case 2 is connected with the crosshead guide.It frequently has an opening into the sub-base, thus permitting… … Fig. 7 End Elevation and Part Section of Modern Simple Engine by a neat, pressed, sheet steel cover, which prevents the oil frombeing thrown outward on the floor while the engine is running.Quite frequently the crank cover is made of cast iron. Cylinders. The cylinder 5, Fig. 5, is one of the most…
