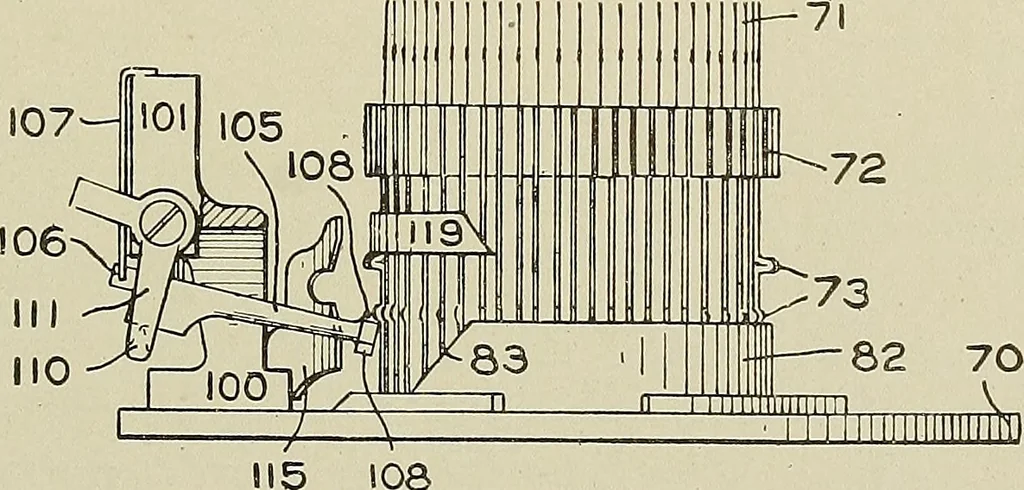

raised, and thelower cam 112 throws the picking-finger 105, into the position shownin Fig. 157. At the same time, the motion of the cam-ring is changedfrom a continuous rotary to a rotary reciprocating movement, duringwhich movement neither cam 90 nor cam 97 performs any function.As one side of the… … 108 Fig. 157. move, and with it the standard and cam-plate, one of the lower cams117 of the plate rides under the finger and elevates it, thus causing theupper surface of one of the lugs 109 of the picker to throw that needleup out of action. As the finger finally rides into the slot 118 of…
