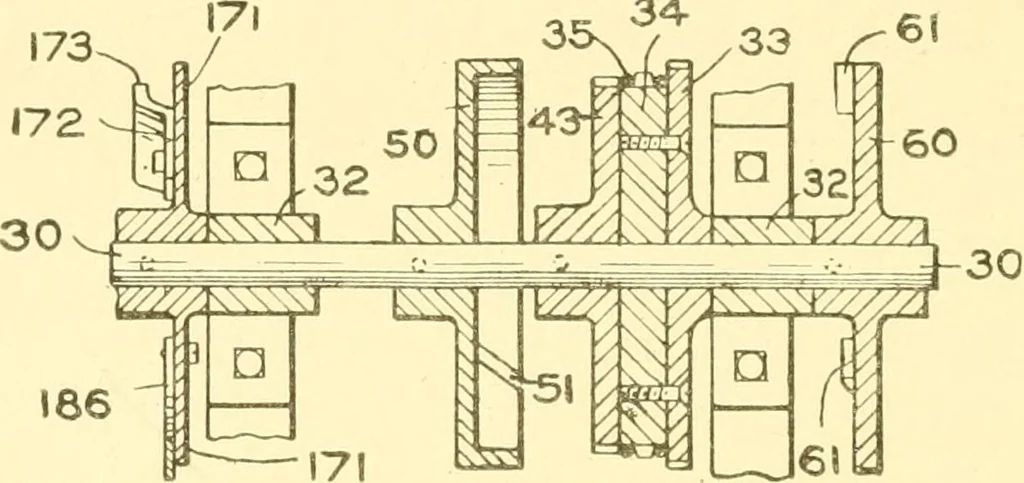

he first elevation to the lift-rod, whilecam 175 gives it the second elevation or hitch before referred to, afterwhich the end 176 of the lever passes to the short section of plate 172behind cam 175, and at the next advance of the disc it passes off theplate and to the position shown in Fig. 150.… … Fig. Cam Shaft. for lever 156 and arm 177, bears against a pin 182 projecting from thearm, and tends to hold the arm and lever in the position shown inFig. 150, a stop 183, projecting from ring 76, serving to limit the move-ment of this lever and arm toward the left. The circular plate 95, which…
