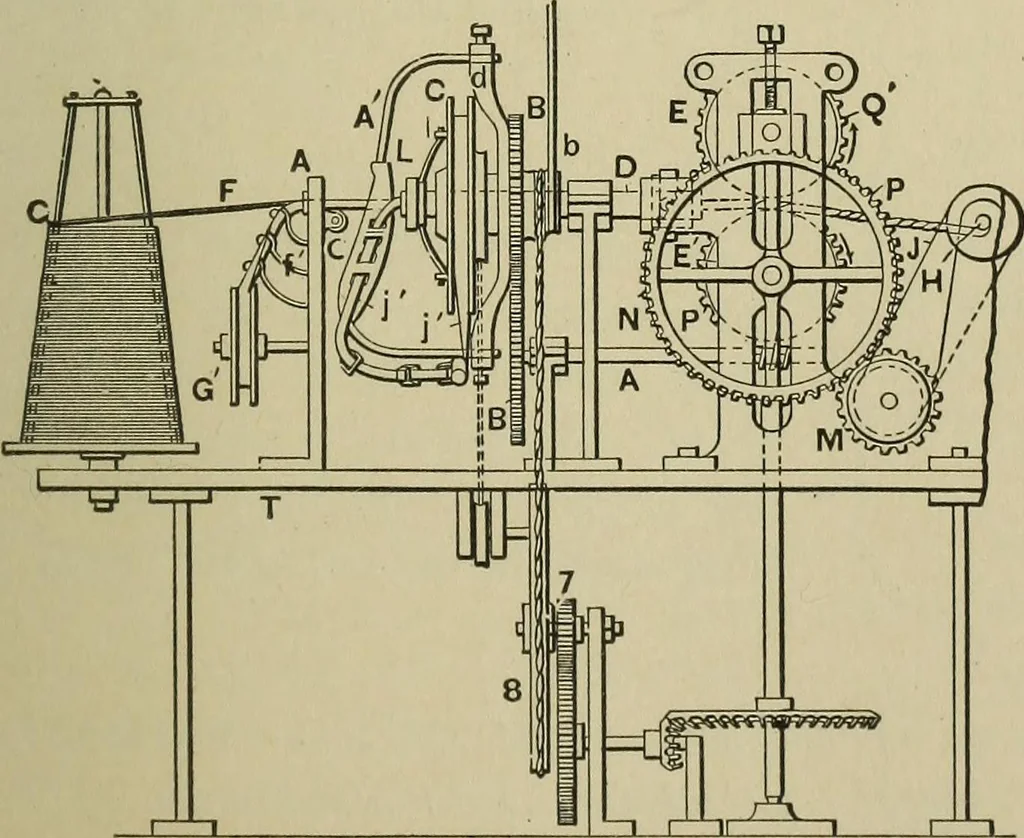

the machine by the geared rollers E, E, and wound upon adrum at H. A rub-ber ribbon is wrappedupon the wire throughthe guides and eye at A. The spool C de-livers the wrappingribbon through theeyes of the revolvingyoke J, J. The gears B, B drive the shaftA2 and worm a, giv-ing motion to thedrawing… … i68 ELECTRIC POWER AND DEVICES. 400. SHUNT-WOUND DYNAMO. The brushes B, B are con-nected to the main lines, M, M, supplying the outside circuit. The field magnet coils s, s are connectedin shunt across the armature at thebrushes B, B. The field coils are offine wire and many turns, with a…
