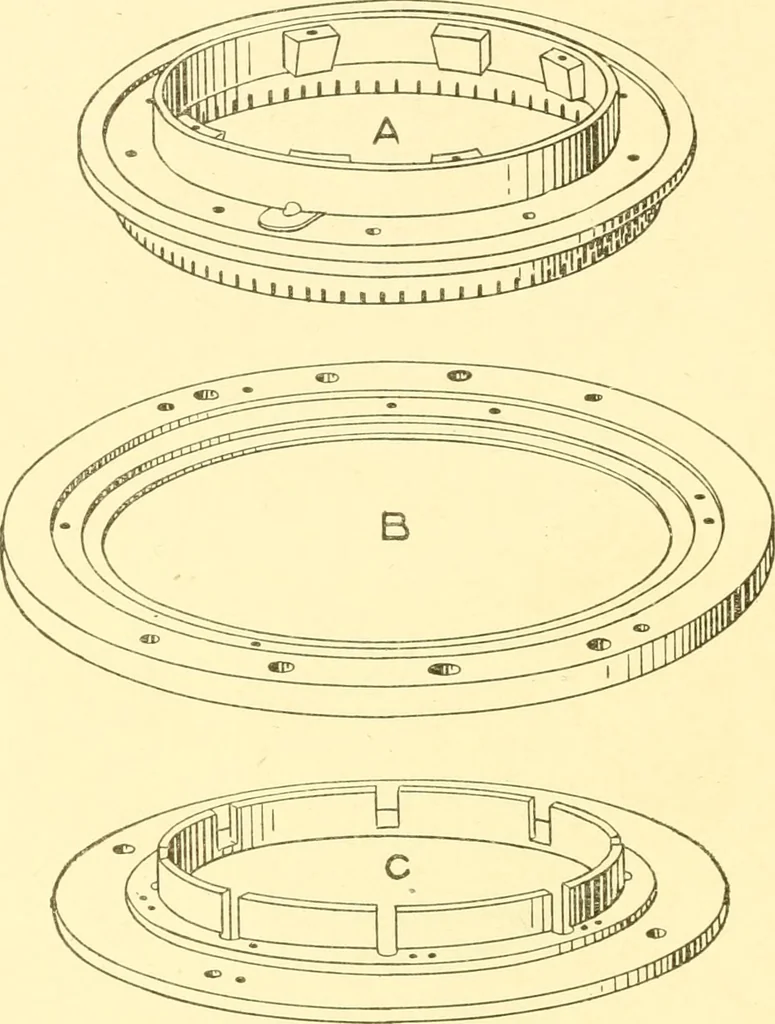

)y raising or lowering the dial andcap by means of the dial arch nut G. (Fig. 39.) Raising the dialslackens or lengthens the stitch, and lowering the dial tightens orshortens the stitch. This is similar in effect with that obtained byadjusting the cylinder cam B^ … Fig. 58. A, Gear Ring. B, Head Riug. C. Cam Ring. To Remove a Section of Cylinder or Dial. The upper partof the cam ring, or what is generally termed the section ring,Figs. 39 and 41, and also the cyhnder gib, is divided into as manysections as there are feeds on the machine, and each section is…
