Pattern making; a practical treatise for the pattern maker on wood-working and wood turning, tools and equipment, construction of simple and complicated patterns, modern molding machines and molding practice (1916)
Ritchey, James, Monroe, Walter W. (Walter William), b. 1869 · Chicago, American technical society · leaf 90

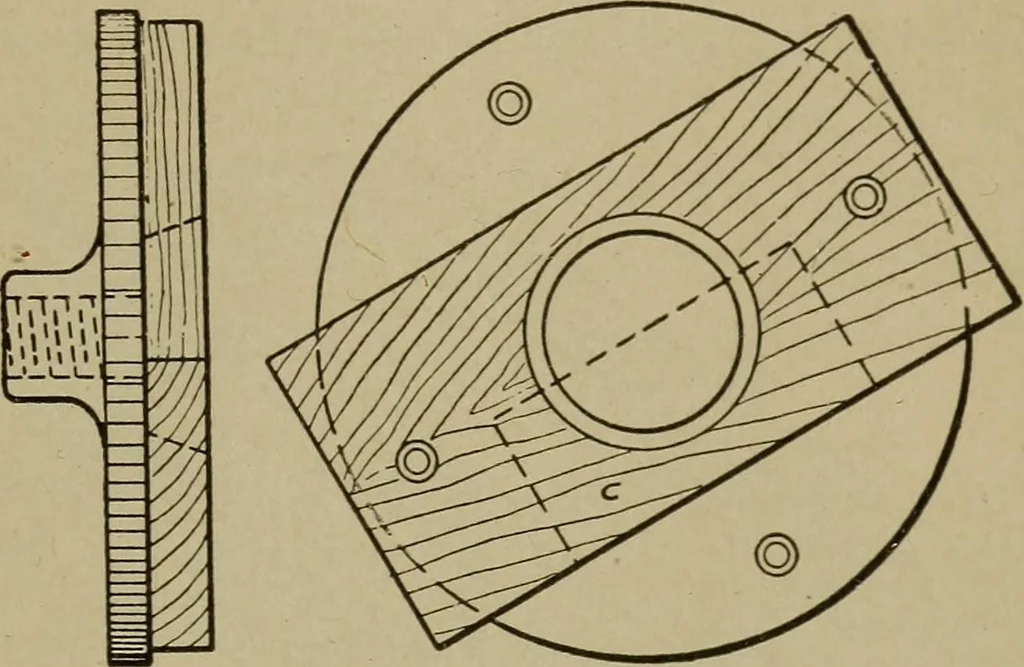

Fig. 145. Skeleton View of Machine Saw withTable Tilted to 45 Degrees PATTERN MAKING 73 … Fig 146. Cope End of Core Box Mounted on Faceplatefor Turning Tapered Section at c. Fig. 140 the nowel core print—and cut another piece e to the length c ofthe cope core print. The waste in the semi cylindrical hole in d is to be removed asfollows: Make two machine-saw cuts, as at i, Fig. 147,…
