Cyclopedia of textile work : a general reference library on cotton, woollen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1907)
Chicago : American school of correspondence · leaf 22

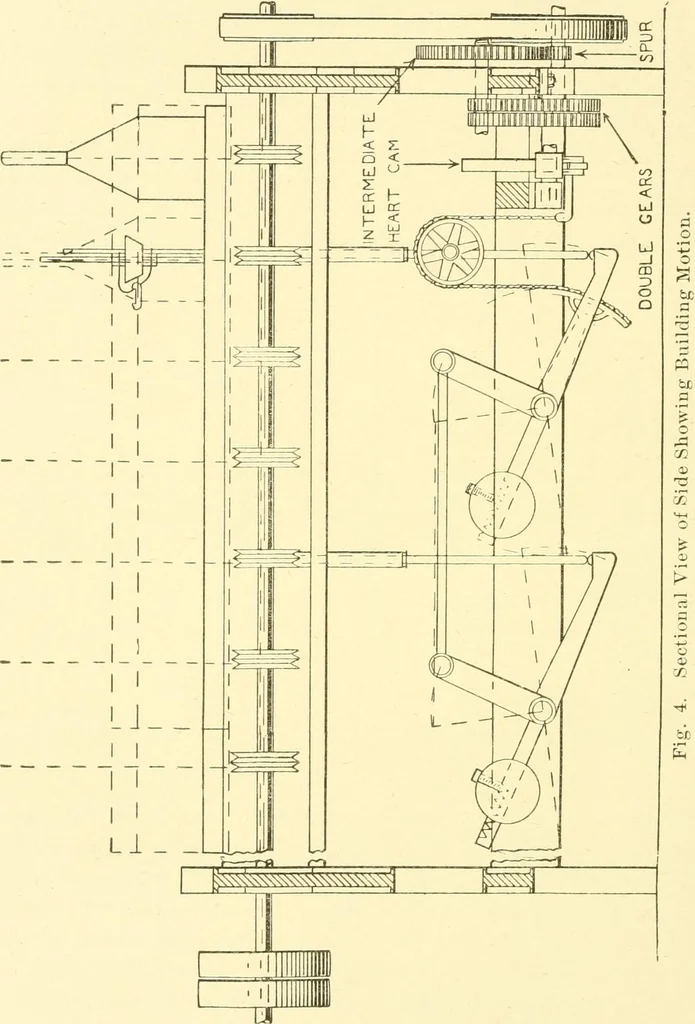

one pair are just half the distance of one tooth aliead of theother pair. Such an arrangement serves to materially lessen theback-lash that must inevitably occur were but one pair of gearsonly employed. This system of gearing transmits motion to theheart cam shaft that gives the rise and fall to… … The heart cam Fig. 6 has a long and short side, imparting tothe building rail a slow rising movement, making a close wind onthe bobbin and a quick falling movement which lays the yarn !• KNITTING across the close wind and binds it in a manner best adapted foruse on a knitting frame. The building…
