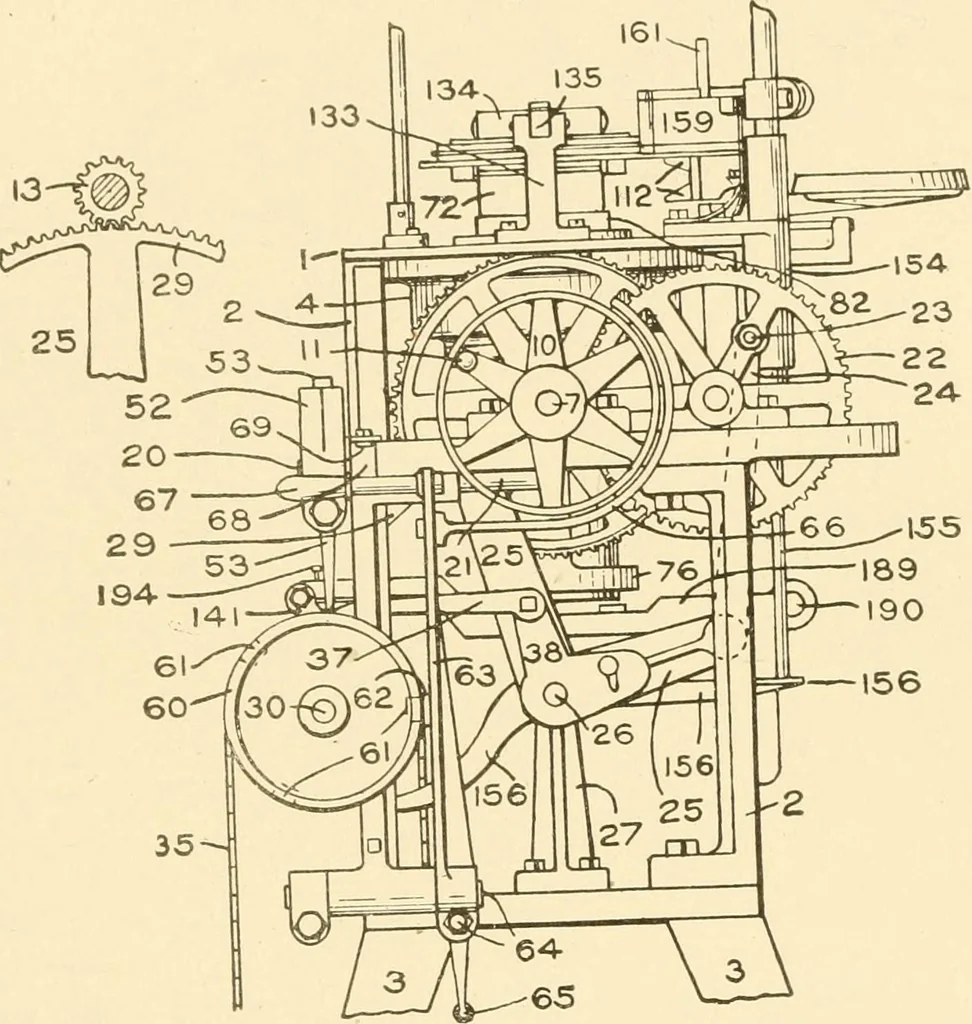

&4 KNITTING 237 Fi<r 164), the pulley having teeth to engage the links .n the pattem-ehain, some links having lugs 36. The ratchet and pulley ave dnvenin the direction of the arrow shown in Fig. 162, by means of a pawl 37connected with one end of an elbow-arm 38 (see Fig. 14S) mountedon… … Fig. 148. is a shield 24, on which the pawl rides during a portion ot its stroke^The shield is secured to the bracket with a bolt to adjust the amount ofeed imparted to the pattern-chain. A ratchet 43 (see F>gs. 63 and164) is secured to the shaft 30 on the opposite side of the pulley 34,and this…
