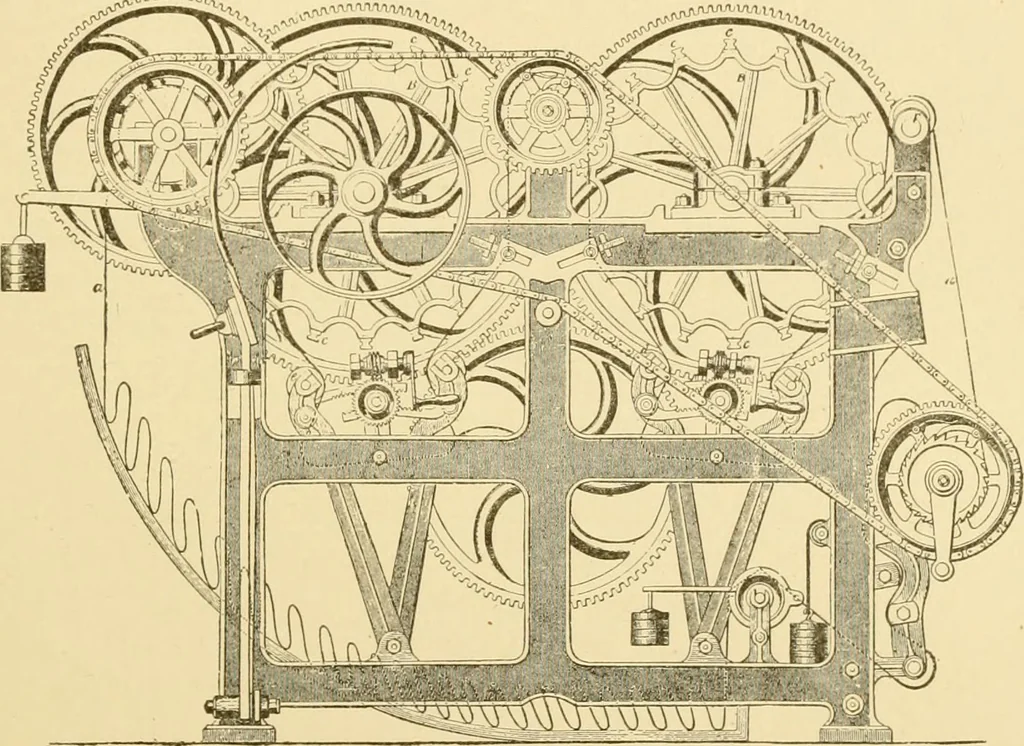

under or back of the otherroll and bar, which is set into a frame swinging on tlie axis or thelower roll. The bar is corrugated, and aids in taking out wrinkles.From there the pieces pass up and over an idler roll, and thencearound the cloth roll, which is actuated by the chain from theback roll,… … Fig. 18. Sectional View of Double Cylinder Rotary Gig. and gear. The cloth passes over the first and under the secondapplication roll, and thence to the third and fourth. It then passesupward and back of another brass-covered bar, and up to the middlecloth roll, which is also a stretch roll. By…
