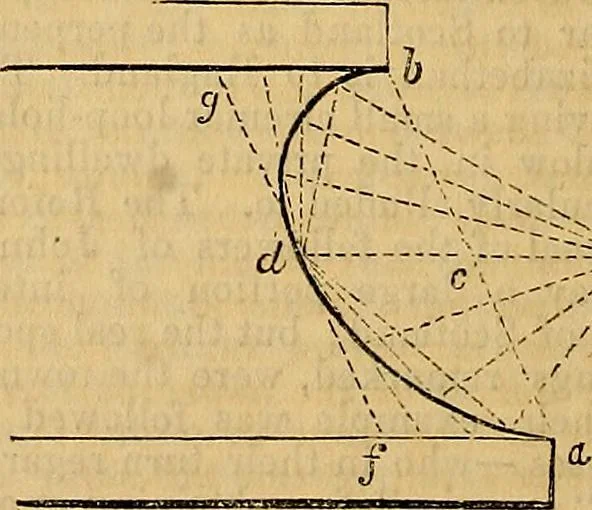

cle bfe; join e a and produce it to f;then join d f, cutting a c in g; from ^r as acentre describe the arc af; this arc, in con-junction with bf, completes the contour af bof the scotia. Another mode of describing this mouldingis shown in fig. 16. Join the extremities a andb, and bisect a 6 in c ;… … ---i^f^ Fig. 16. points of division in a/draw straight linesfrom d; draw also straight lines from e throughthe points in a e, till they meet successively thelines drawn to a f. Having performed the THE DECORATOR S ASSISTANT. 235 aame operation on the upper side, the series ofintersections thus…
