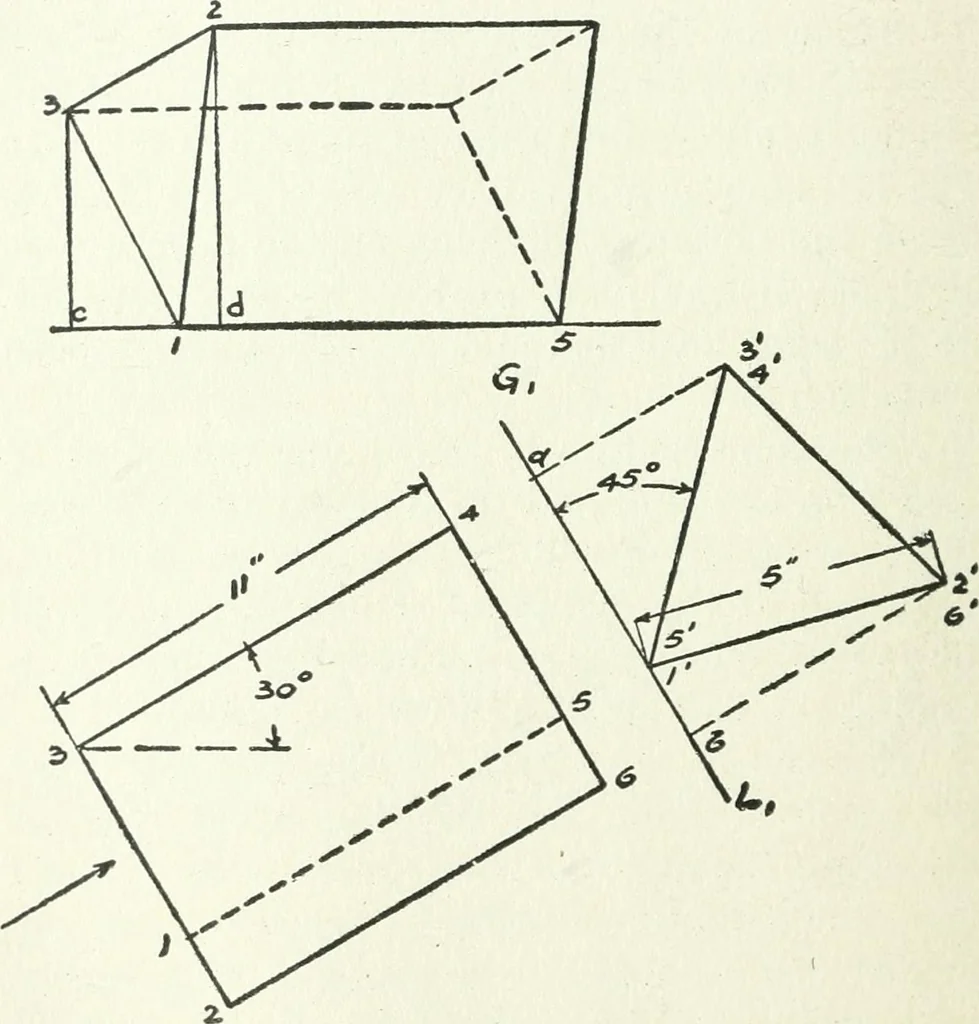

ar to V. The axis Y may be imagined topass through any convenient point, as the ex-treme left-hand point of Fig. B. In this revo-lution (Article 64), the elevation does not 78 MECHANICAL DEAFTING change shape or size, but simply its position.Hence, in Fig. C, the elevation of B is drawn atthe… … Fig. 60. Drawing Plan and Elevation of Triangular Prism. 71. Auxiliary Planes of Projection. It has been shown in previous figures that often an endview must be made before constructing other MECHANICAL DEAFTING 79 views. Many times this end view may be madeon H or V. Sometimes, however, it may…
