Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 90

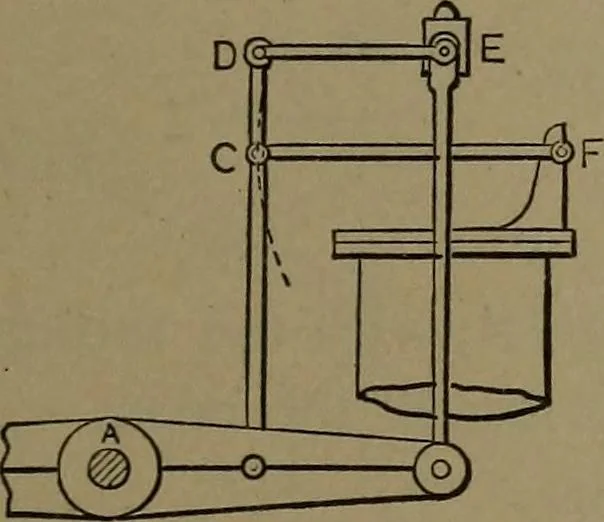

273. « PEAUCELLIERS PARALLELMOTION.—A, B and B, C are of equal distances,when the connecting rod will move in a straightline. When B is connected with the outer jointof the link quadrangle the inner joint C willhave a straight-line motion. … 274. PARALLEL MOTION, usedside-lever marine engines.E, cross-head. C, F, radius bar. D, E, parallel bar. on
Mechanical movements
