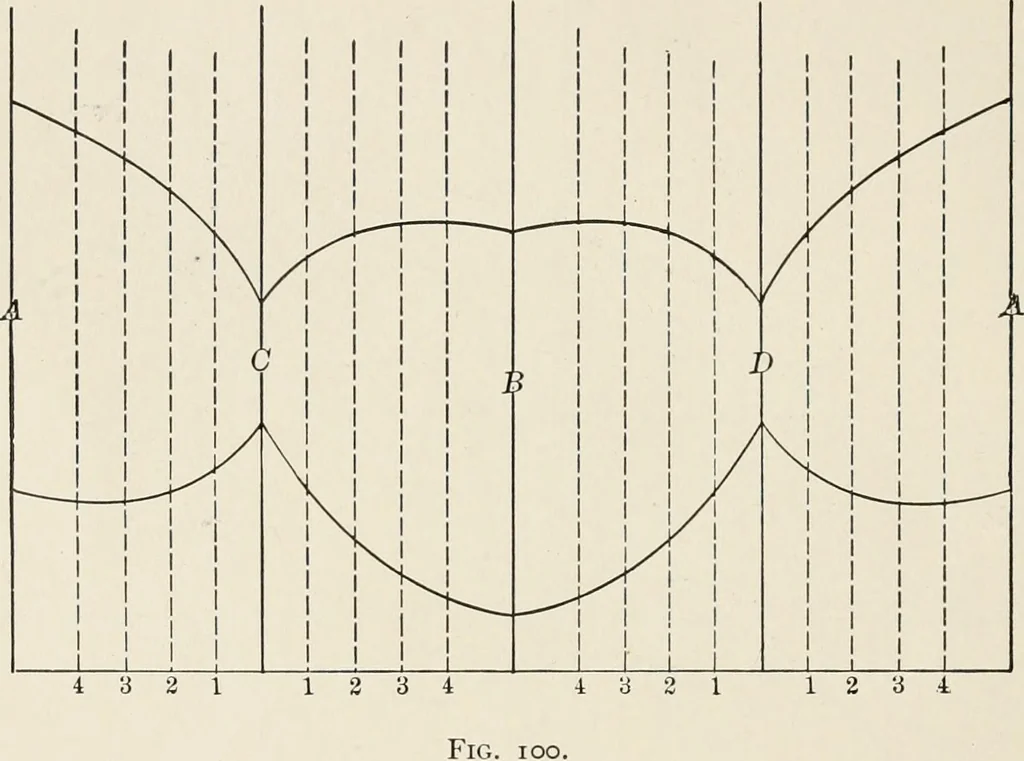

generatorsof the cylinder, and may also contain the edges A and B of the prism which hasbeen placed parallel to the V.P.; (2) that the elevations of the points of intersec-tion of these two edges with the generators of the surface of the cylinder are aaand bb respectively; (3) that similarly cc are… … (i.e., not necessarily at equal distances from each other) to run parallel to the V.P.,are drawn on the surfaces of the prism at i, 2, 3, 4, first in plan and then in eleva-tion, by taking advantage of the rabatted square end; (5) that vertical generatorlines on the surface of the cylinder, and in…
