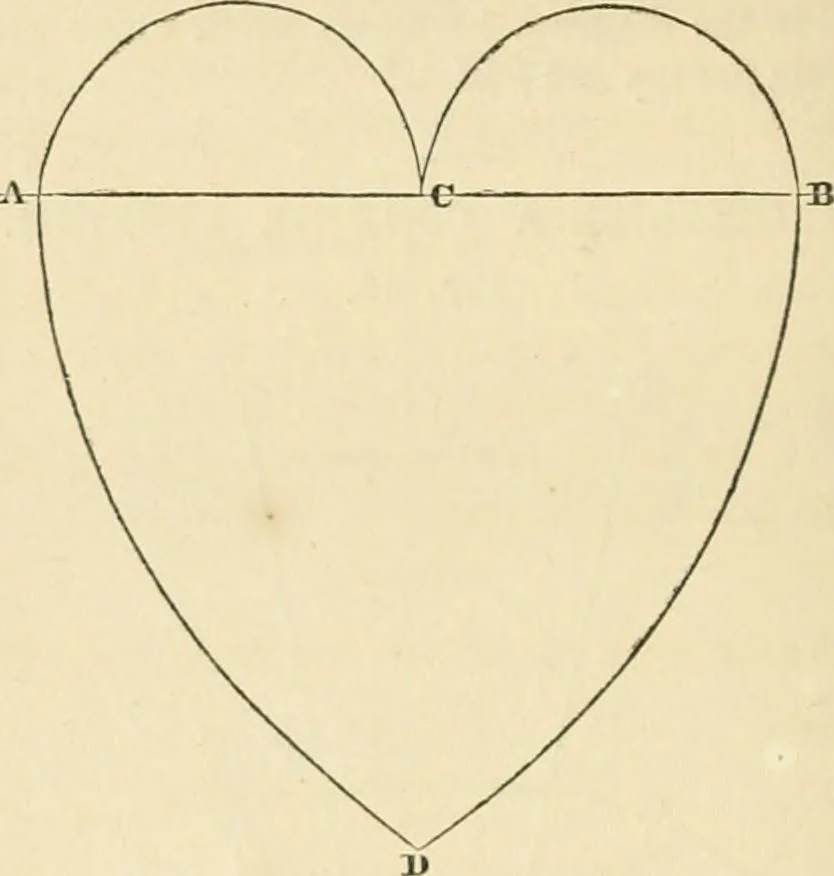

ut on the upper or larger arc CDC, making dueallowance for the locks, wire and burr. This is for one piece ; if fortwo pieces you will lay out only one-half the circumference on theplate ; if for three pieces one-third ; if for four pieces one-fourth ; andso on for any number, remembering to make… … Draw an indefinite line AB ; then span the dividers one-fourth the■width you wish the heart, and describe two semicircumferences ACand CB ; span the dividers from A to B, the width of the heart, anddesaribe the lines AD and BD, which completes the description. CYCLOID.Fig. 18.
