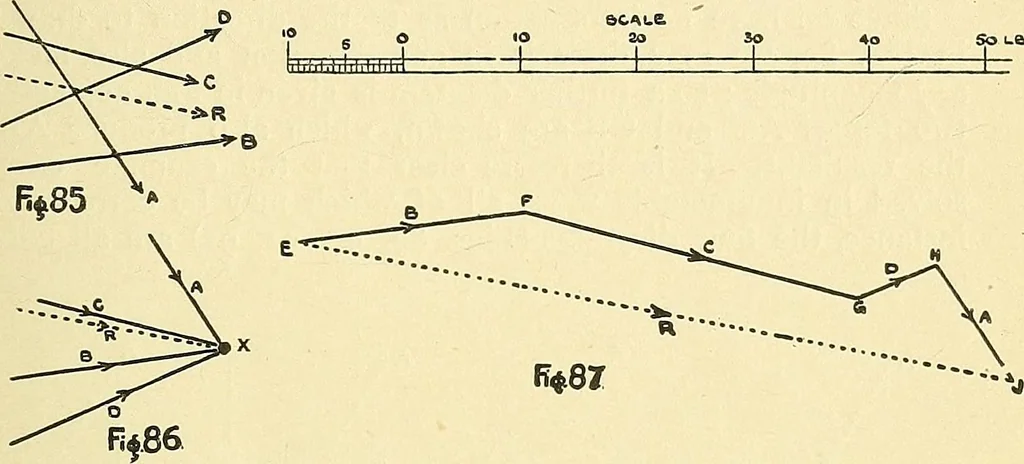

rcewhich tends to move the body. TEXTILE MECHANICS 67 Example.—We can easily take the diagram (Fig. 83), and arrange theforces so as to show them as acting on any small body. This isdone by first drawing the position diagram (Fig. 85). Now draw asmall circle to represent a body, and draw lines to… … EF parallel to and equal in magnitude to B on the scale chosen(Fig. 87), FG parallel to and equal in magnitude to C, GHparallel to and equal in magnitude to D, and HJ parallel to andequal in magnitude to A. Join EJ and this represents theresultant, its magnitude, its direction, and its sense of…
