Descriptive geometry for students in engineering science and architecture; a carefully graded course of instruction (1915)
Armstrong, Henry F. (Henry Fry), 1868- · New York, J. Wiley & sons, inc.; [etc., etc.] · leaf 99

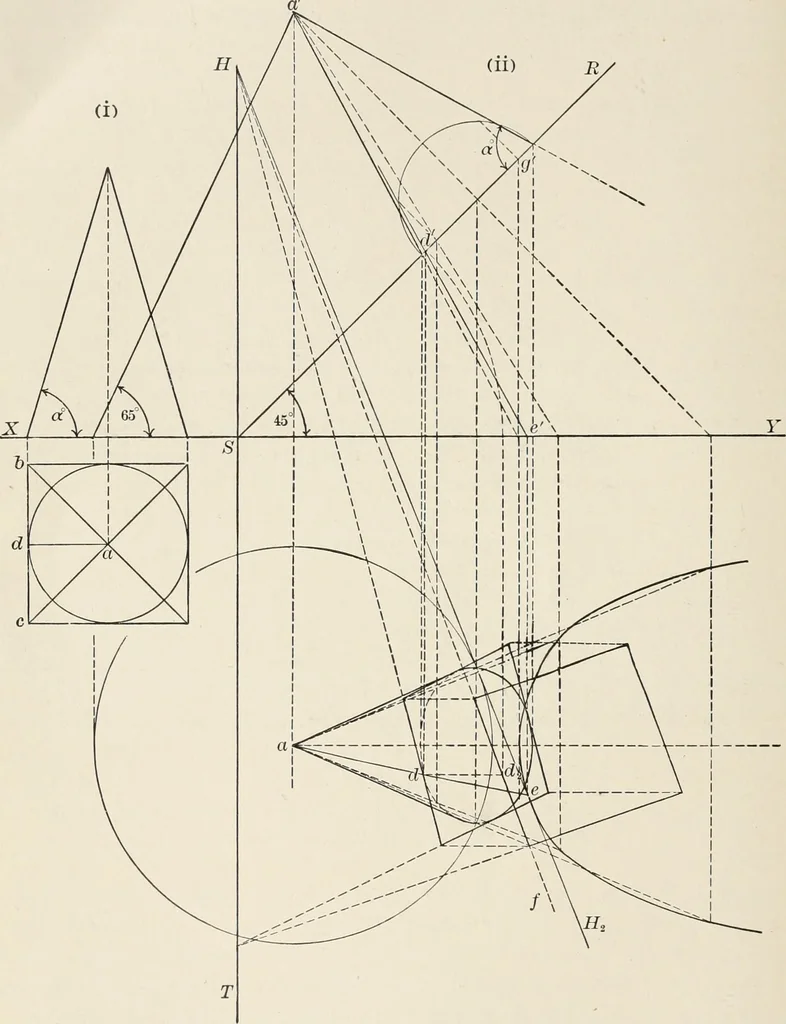

is line will con-tain the edge of the cube common to the two faces whose inclinations are given.Rabatte//a to ha2, and using ao as the comer for a square, mark off J2C2 on therabatted line, and also make d-ido perpendicular to it. These measurements, in 90 DESCRIPTIVE GEOMETRY the case of a cube,… … Fig. 02. It will readily be seen that from this rabattement of the two edges the plansac and ad may be obtained. Three edges are now found in plan, namely AB^ PROJECTION OF SOLIDS DEPEXDEXT OX TAXGEXT PLAXES 91 AC and AD, and parallels to these will be necessary in order to complete theplan of the…
Geometry, Descriptive
Internet Archive · California Digital Library · Public Domain Mark 1.0. Free to use for anything.
