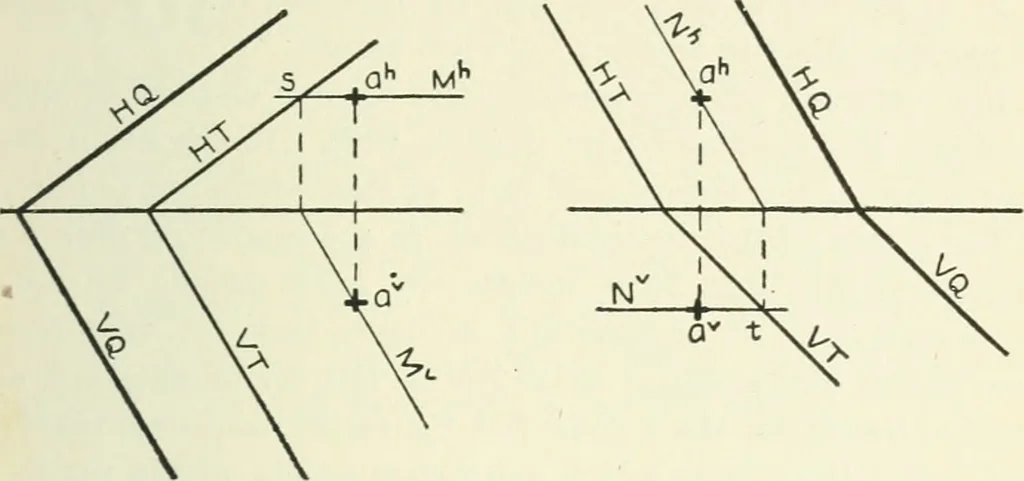

e the given plane and a thegiven point. A line may be drawn through a and parallel toQ by drawing it parallel to either the horizontal or verticalprincipal lines of Q (§ 104). The line M, drawn through a, isparallel to the vertical principal lines of Q; through M passthe required plane T, parallel… … Fig. 147. Fig. 148. Special Case (Fig. 149). Let the given plane Q be parallelto the ground line. Then the auxiliary line M, drawn througha and parallel to the principal lines of Q, is parallel to GL(§ 101) and has no traces on H and V. Pass the auxiliary
