Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 339

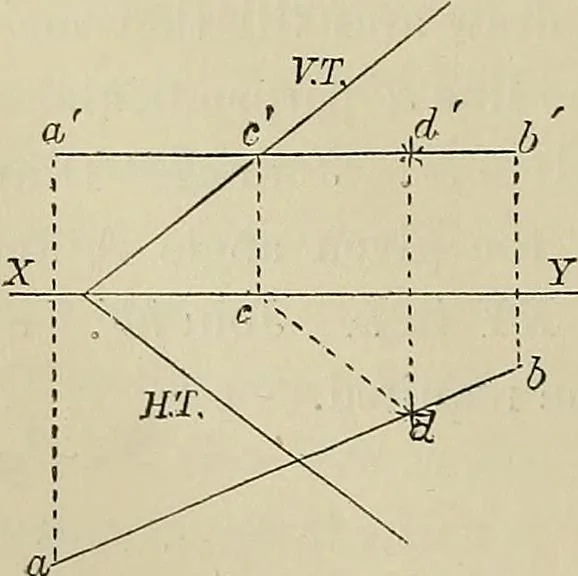

101. To find the intersection of a given line ivith a given plane, theline to he horizontal and inclined to V.P. Fisf. 131. Let H.T. and V.T. represent the traces of the plane, andah, ah, the projections of the line.^■^ ^ From c, where ah cuts the V.T., ^-^^ • -^ draw the perpendicular cc. From… … CHAP. XXVI LINES INCLINED TO PLANES 3^9 Problem 102. To find the intersection of a given line with a given plane, theline to he inclined to both co-ordinate planes. Fig. 132. Let H.T. and Y.T. represent thetraces of the plane, and at, ah, theprojections of the line. Assume a Y. plane containingthe…
Geometrical drawing
Internet Archive · Wellesley College Library · Public Domain Mark 1.0. Free to use for anything.
