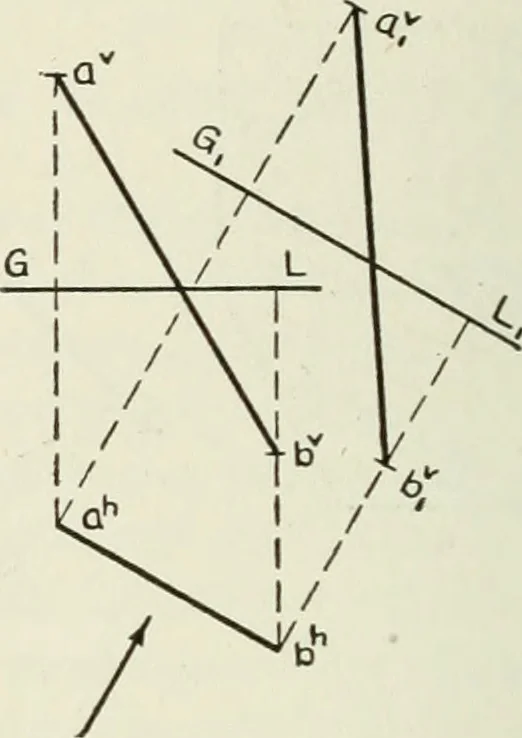

is ahove II, and on thenear side if the point is below. Thus, in Fig. 87, Vx is viewedin the direction of the arrow, and the projection axbxv can In-laid off only on the side of GXLX as shown. < inversely, if thesecondary projection axvbxv is constructed as in Fig. 88, it followsthat Vx is… … Fig. 89. Fig. 89, note that the directions of the points a and & fromH, as shown by the relations of a and bv to OL, must be pre-served in the secondaryprojection. In Fig. 90 aprofile line is shown pro-jected on a profile planeby this method. (See§§ 64, 66.) 70. Simplification ofProblems by…
