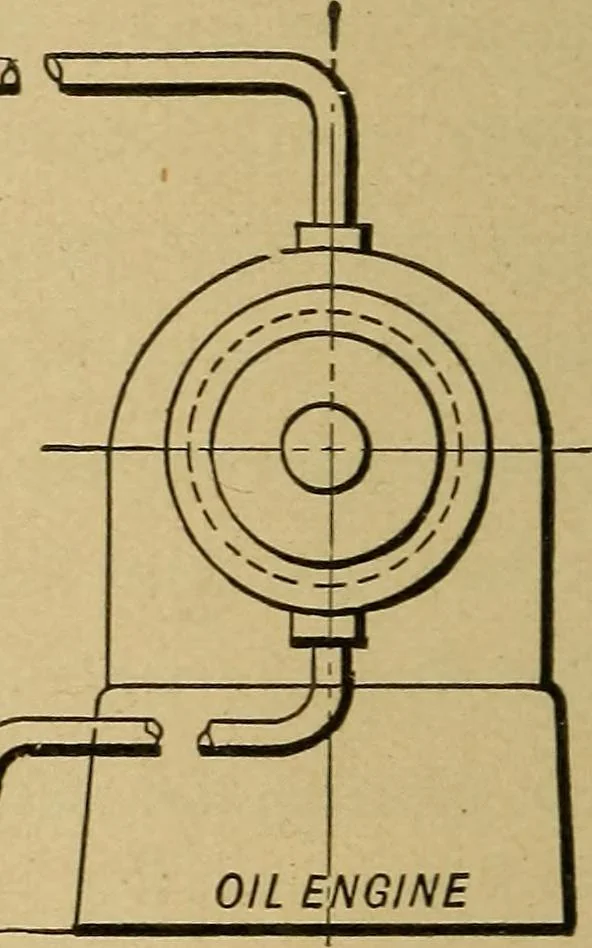

of the total io8 OIL ENGINES. heat evolved from the fuel used in the engine is lost inthe exhaust gases and to the cooling water around thecylinder-jacket. This represents a great waste, whichcan be partly saved in any installations where heat is-required for outside purposes. In instances where… … Fig. 53- supply heat to the building, as shown in Fig. 53. Thehot water issues from the cylinder at not less than no°Fahrenheit temperature,, and will heat the piping asshown. With a 10 to 20 brake H. P. oil engine, 200feet of 2-inch piping can be suitably warmed. The heat from the exhaust gases…
