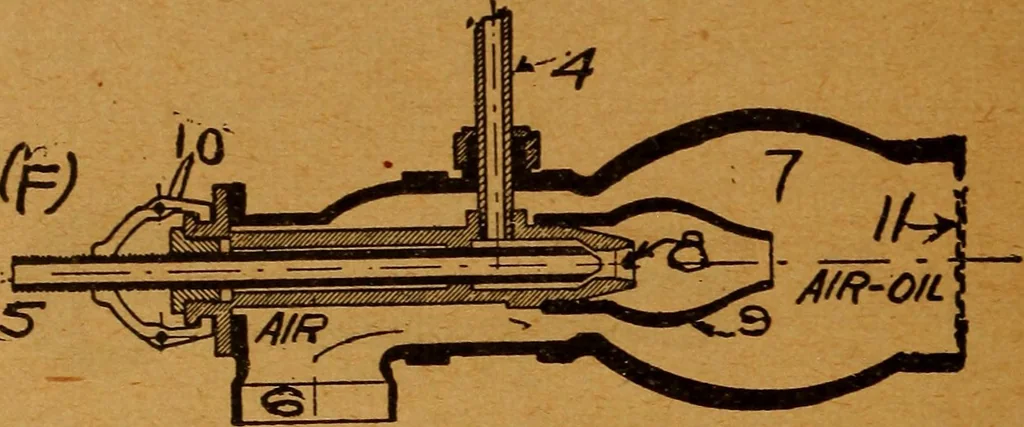

on to the air that passesover the burner. This is of considerable aid in maintainingcomplete combustion in the furnace, and also tends to preventdeposits in the burner. 366 GAS, OIL AND STEAM ENGINES In the injector type of burner shown by Fig. B the air orsteam nozzle terminates inside of a shell… … Fig. F. Mixed Pressure Burner, Using Both Steam and Low PressureAir. which draws the oil into the burner from the supply pipe. Onentering this vacuous space the oil comes into contact withthe jet and is blown out through the opening (2) in the formof a spray. This vacuum is high enough to lift the…
