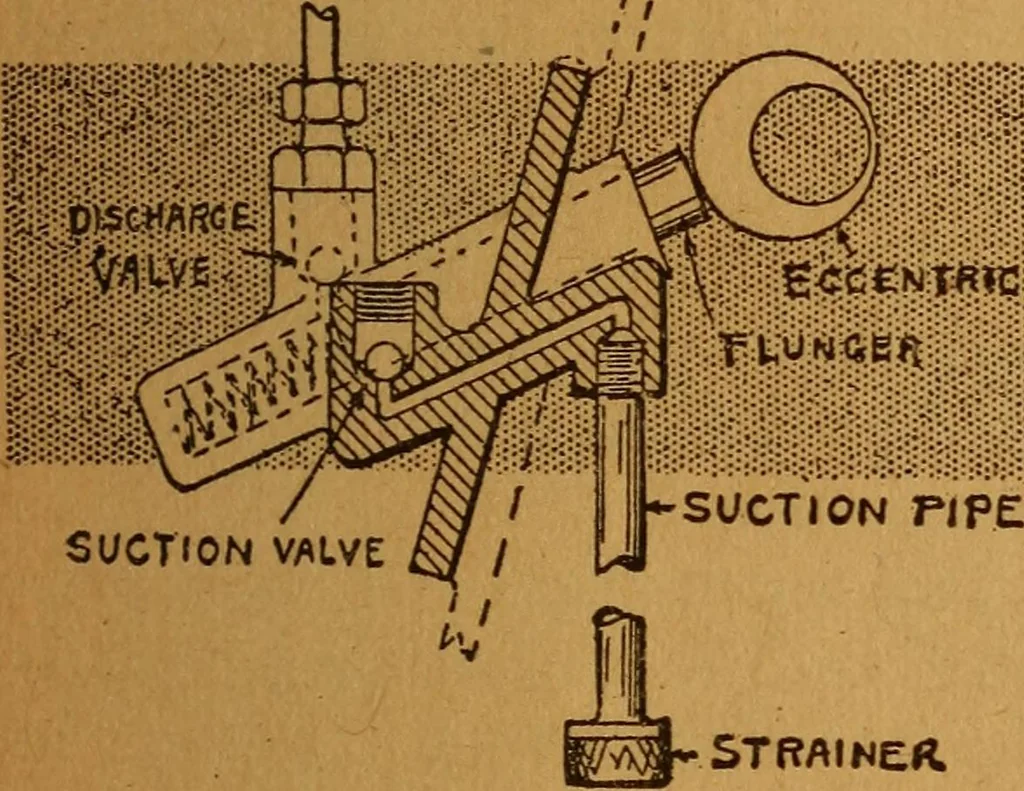

Fig. 20 illustrates this type of pump,which is incororated in the Universal four-cylin-der engine. This pump is placed inside thecrankcase and is driven by an eccentric from thecamshaft. It consists of a barrel carrying aplunger, which is held in contact with the eccen-tric by a spring. Ball check… … SUCTfON VALVE STRAINER Fig. 20. Plunger type of oil pump. 30 Home-Farm Power and Lighting. trie, this ball valve closes and the oil is forcedout through the other ball valve, which had pre-viously remained closed. Governors. Due to the fact that the load on the enginewill v^ry at times, it is…
