Noyes, William, 1862-1928 · Peoria, Ill. : Manual Arts Press · leaf 154

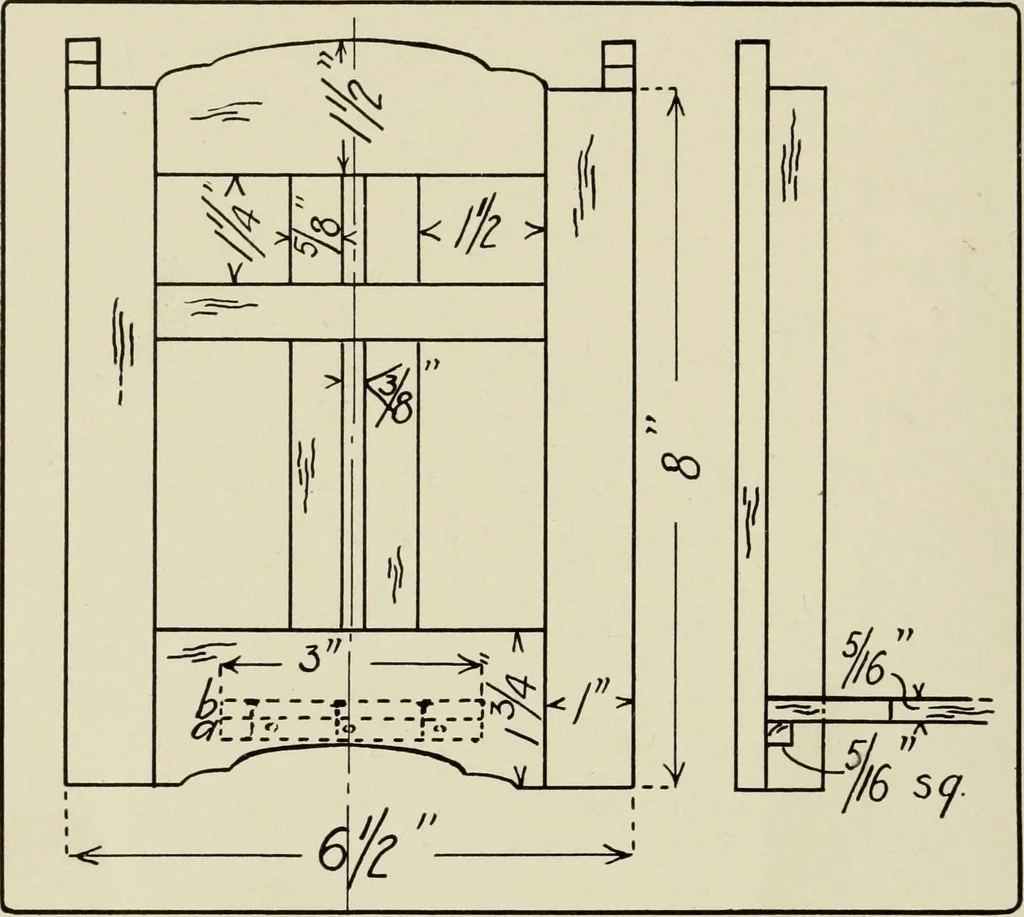

smaller circle of2^ radius to make room for the candle-stick which is fastened tothe bracket. See Fig. 202. Saw and plane out this shape. 154 DESIGN AND CONSTRUCTION IN WOOD For gluing the panels together, prepare a few forms of the shapeshown in Fig. 203. Put a thin film of glue (liquid glue will… … Fig, 201. Working drawing- of lantern shown in Fig. 1%. forms just made. See Ilandworlc in Wood, p. 171, Fig. 258, andp. 170, 2nd paragraph. When dry, clean up. The frame should be stained and finished before the stencils areput on. Hence it is better to make the bracket next, so that all…
Woodwork
