The design, construction and test of a direct reading engine indicator (1917)
Tower, Alexander McJunkin, Siegmund, Humphreys Oliver · leaf 100

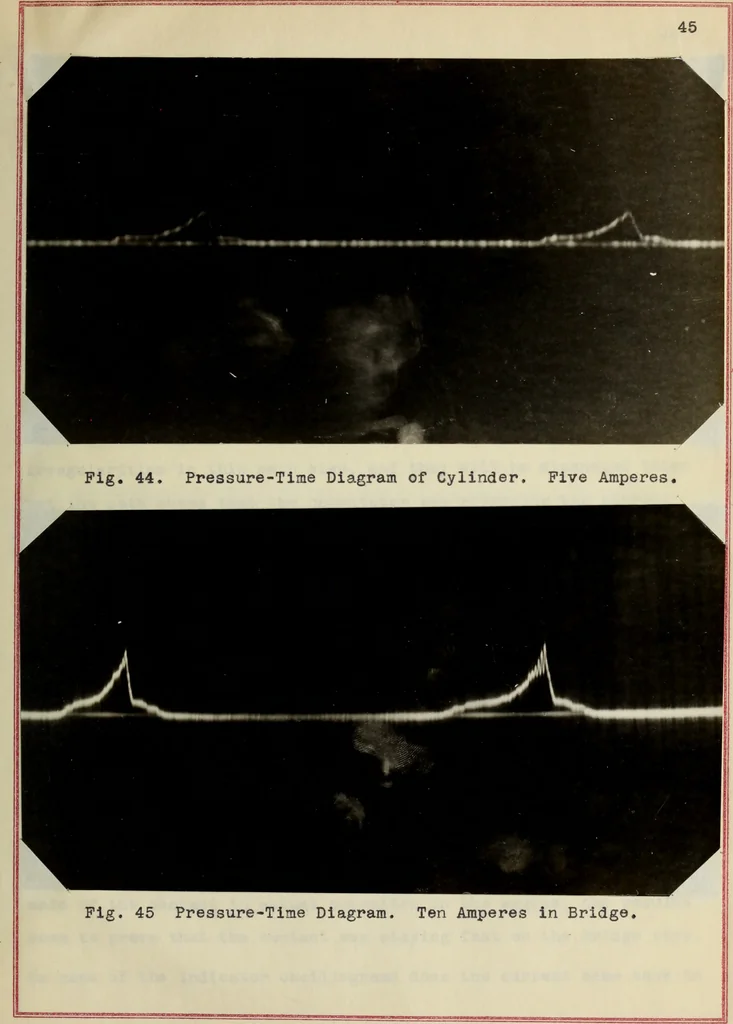

t might be well to note that the printer made the pictures the reverse of the way one is accustomed to look at an indicator card. The next picture taken is shown in Figure 45. It was taken with about ten amperes in the bridge wire and gives a size of diagram in which the path shows up better. The… … 46 wire. The diagrams are correspondingly larger and the irregularitiesshow up even plainer than before. Figure 47 shows a record of thepressure as the engine passed through a single cycle. All of theevents in the cycle are clearly visible, and the path is unbroken,showing that the contact was…
Internal combustion engines · Theses
