The design of marine engines and auxiliaries (1916)
Bragg, Edward Milton, b. 1874 · New York, D. Van Nostrand Co. · leaf 80

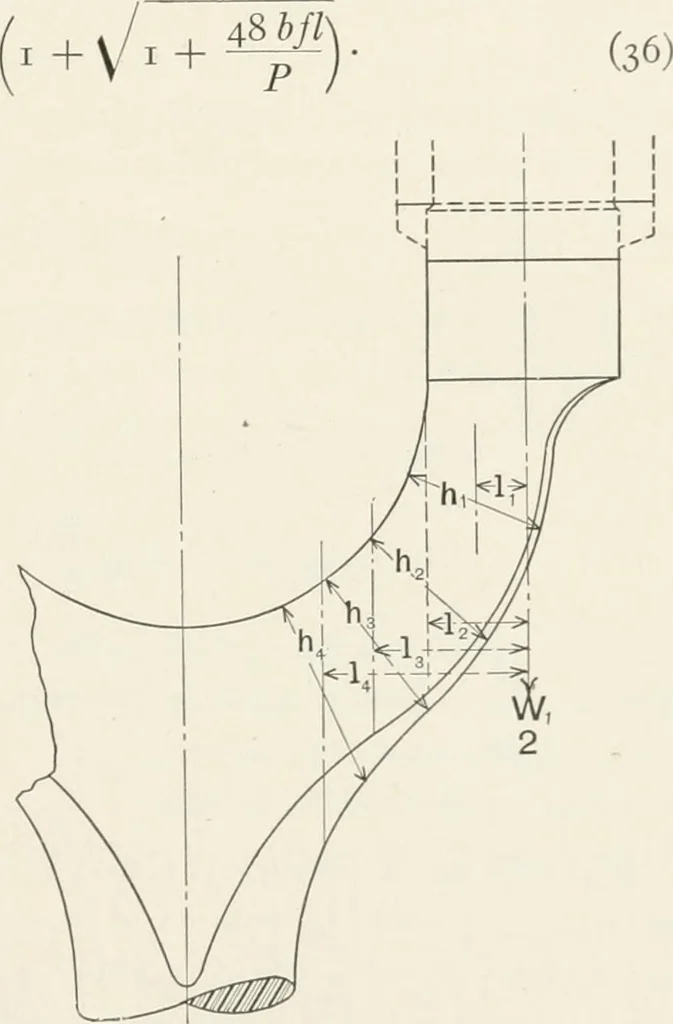

s, etc., asshown in Fig. 34, andfind the values of h. Thecontour of the inside of ^^ the fork is made semicircular and the values of h are to belaid off about normal to the semicircle so that the center ofthe breadth h is the proper distance from the line of action ofthe force. The outside contour… … 68 THE DESIGN OF MARINE ENGINES AND AUXILIARIES contour a straight line; this makes the fork heavier as thestraight line must include the extreme point. The lowest pointof the inside of the fork should clear the end of the piston rodby about the thickness of the nut on the end of the rod. Aworking…
Marine engines
