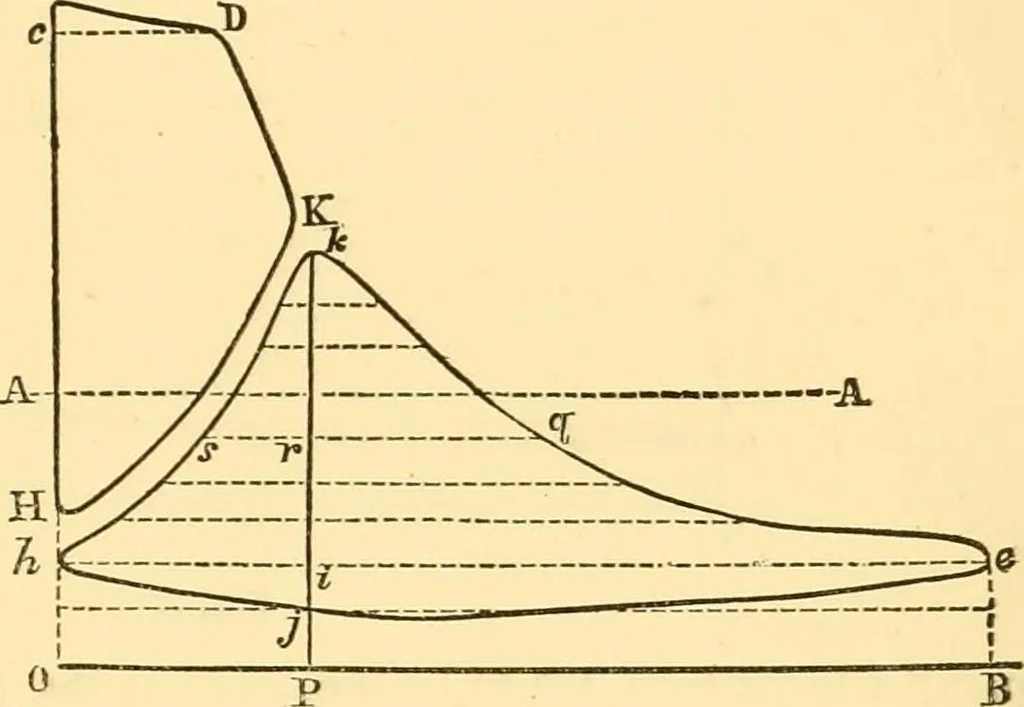

er,as drawn by the indicator, is represented in Fig. 1 by k i h, and in Fig. 2by I i g h. In combining the diagrams of the two cylinders into onediagram, it is to be borne in mind that when the area of a diagram isconsidered as representing the work done by the steam on the piston atone stroke, the… … Fi& 1. 456 THE WORKING OF STEAM IN COMPOUND ENGINES. diagram of the low-pressure cylinder for combination with that of thehigh-pressure cylinder, the lengths of its base, and of every line in it
