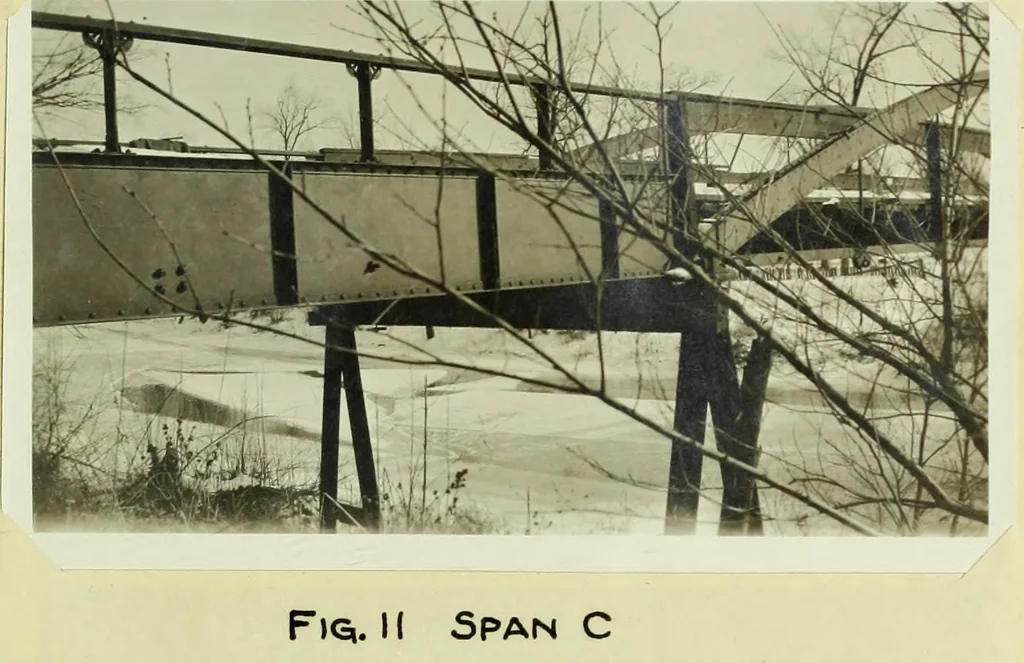

10. the v;ina rods axe attached, are boltedto the lower ohord by a 5/8 bolt thruits lower flange. The connections attcp and bottom are shown in ^ig. 10.The center brace is connected to theupper flange of the upper chord in-stead of the lower flange as shown. … Span C is shown in .^ig. 11. This span has two side gir-ders spaced 15 feet apart. The girders consist of a 50 x 1/4web plate and four 5 xPjx 1/4 flange angles. Each have six5 X E X 1/4 stiffner angles; but unlike present practice allare riveted to the outside of the girder. The lower insidefj.ange…
