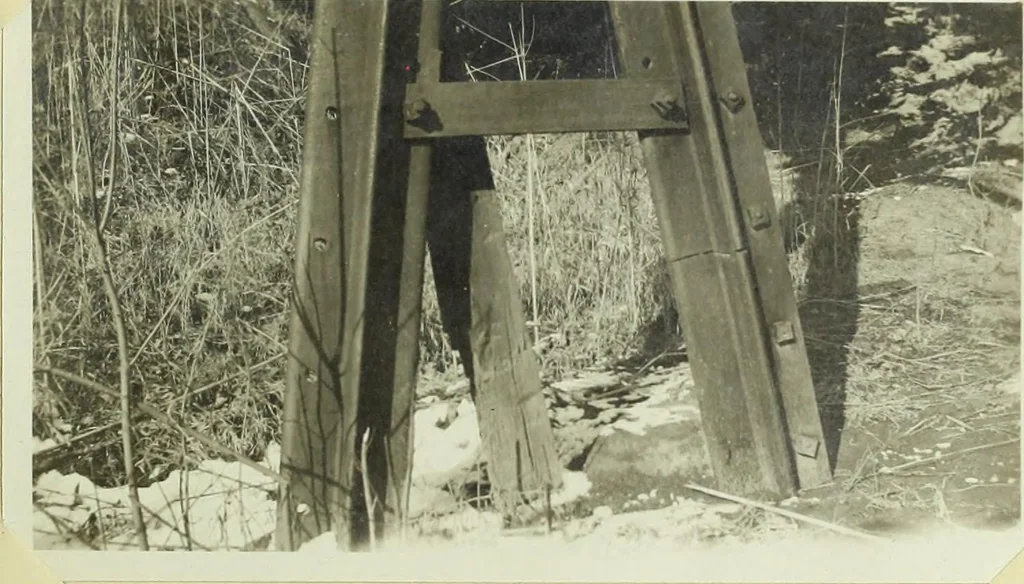

ge angle. At the center of each panel a 1 round lat-eral rod connects the girders by passing thru the web of the gir-der and bolted with a nut on the outside. A neat railing com-posed of a channel supported by vertical plates v>fith fancy con-nections, is placed on top of each girder giving the… … FiQ. 12 Near vrew of Fracjukep Bent 1
