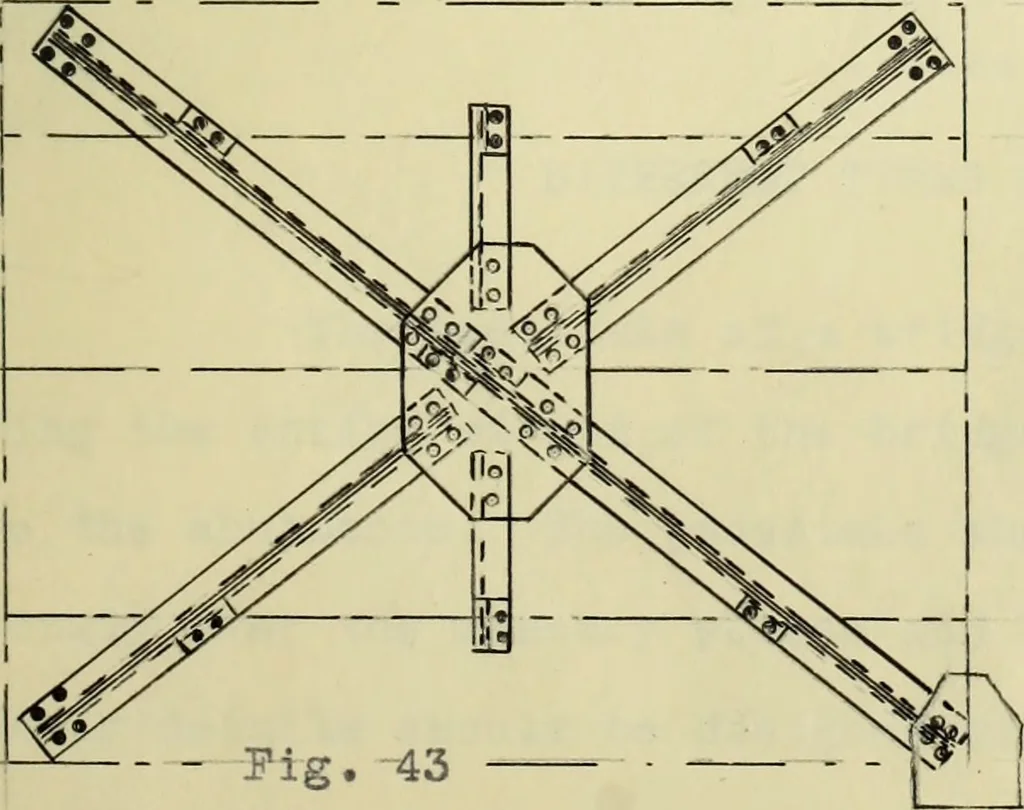

gths. In one large bridge, the diagonals were made up of twoangles riveted back-to-back. These diagonals were connected attheir ends to the floor beams,by plates riveted to the floor beamsand the bottoms of the end posts. Connections were made betweenthe diagonals and also to the stringers. In… … bridges are made directly to Fig. 43 shows the arrangement between the trusses besides for the ordinary highway performing their duty of taking of this connection. the floor beams which also act care of the wind stresses. The lateral connections
