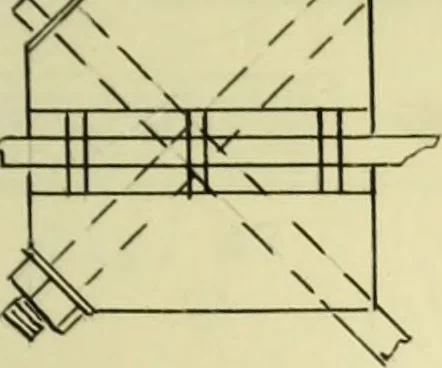

Pig. 44 27 as struts. The connection shown in Fig.W4, is usedvdiere rods, adjustable bynuts at both ends, are employed. An ob-jection to this detail is the disadvan-tage of using bent plates because of the cost of their construction. ^/^ J i … Pig. 45 \ N / / 9 a: rd// \ \ A lateral connection, used undersimilar conditions to the preceding, con-sists as shown in Pig. 45, of four anglesIt affords a good stiff connection, andis an efficient and economical detail. The connection shown in Pig.46, is one that is used with rods loopedat one…
