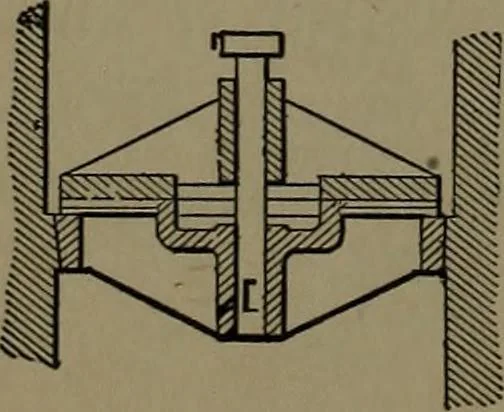

592. DISC VALVE ANDGUARD.—The spherical guardis perforated to give quick reliefto the movement of the elasticdisc. … 593. DOUBLE BEAT DISC VALVE.—Thecentral seat is borne by the cross bar in whichthe guide pin of the valve is set HYDRAULIC POWER AND DEVICES. 159
