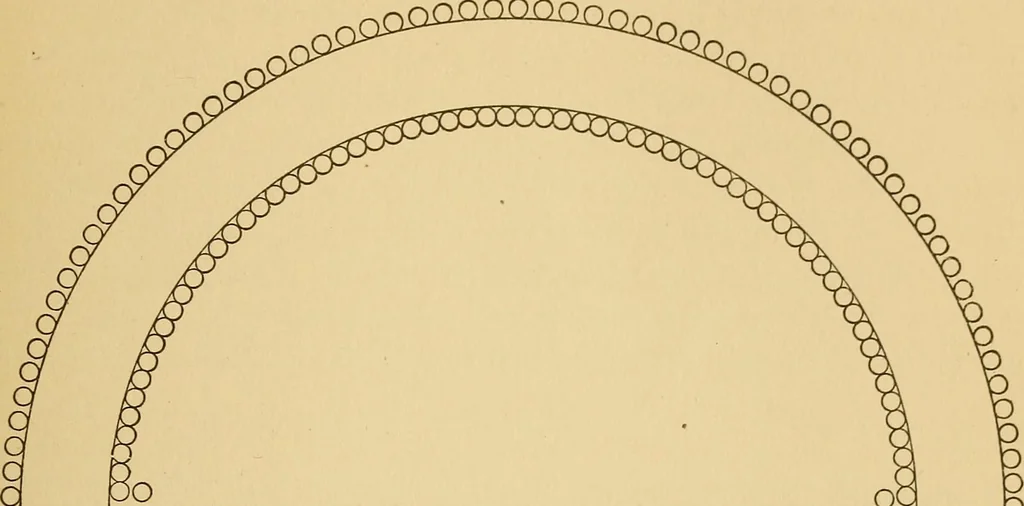

rns wound uniformlyover the rod and distributed in proportion to the reluctance overthe yoke and the joints. We thus secure the same uniformity ofinduction and magnetizing force for the straight element of themagnetic circuit that we had in the infinitely long rod or in theuniformly wound ring. We… … cxrrrrrrrrrrrrrrrrrrrrrrr^^ ex uuuuuuuuuuoooajLXjuuu^ D -X) Fig. 2.—Illustrating a Distributed Magnetomotive Force. The present paper has to do with magnetic circuits of this kindin which the reluctance of various parts of the circuits is over-come by properly placed current-turns. III. PRELIMINARY…
