Distribution of heating in synchronous converter armatures (1910)
Hight, Eugene Stuart · leaf 28

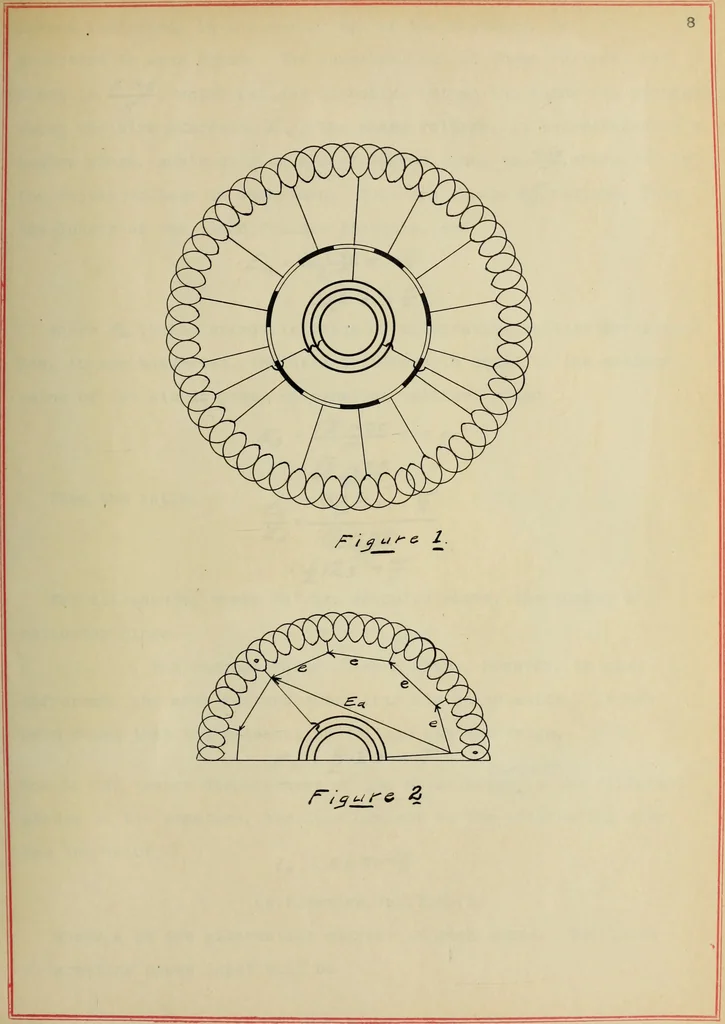

e field excitation and to the revolution of the arma-ture. The total turns upon the armature are ks. Now, if n isthe number of collector rings, there are n divisions in the A S armature winding, and also, there are turns per division or per phase, since n is also the phase rating in the case of any… … phases indicated, is the vector sum of the voltages, e, e% generated in each phase. The numerical sum of these voltages per/< s e phase is , which follows directly. Since the turns are arranged rr about the circumference, , the phase voltage, is represented by a vector chord, subtending an arc…
Rotary converters · Electric machinery · Theses
