Determination of magnetic induction in straight bars (1909)
National Bureau of Standards · leaf 24

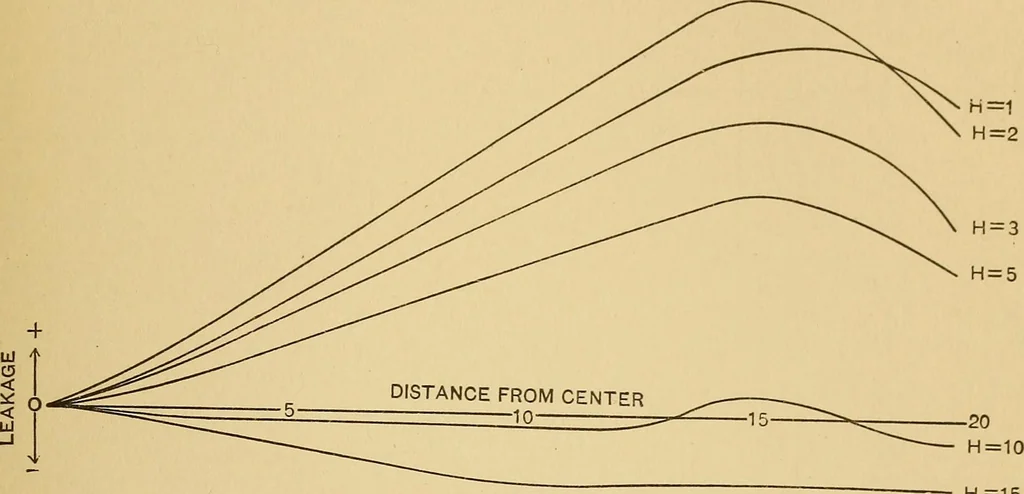

adjacent.Curve 4: Same as 3, but with massive yokes butting against ends.Curve 5: Same as 4, but with rods 2 cm apart.Curve 7: Same as 6, but with better fitting rectangular yokes.Curve 6: Same as 5, but with rods clamped in yokes.Curve 8: Same as 7, but with compensating turns on yokes. Burrows.]… … H=15 Fig. 5.—Showing Leakage under Various Magnetizing Forces in a Thin Strip of Transformer Iron Clamped in a 3-piece U-shaped Yoke. For the higher magnetizing forces this magnetomotive forcepredominates and the middle section of specimen is a minimumfor the total flux. 3. LEAKAGE FLUX IN AIR. Up…
