Determination of magnetic induction in straight bars (1909)
National Bureau of Standards · leaf 42

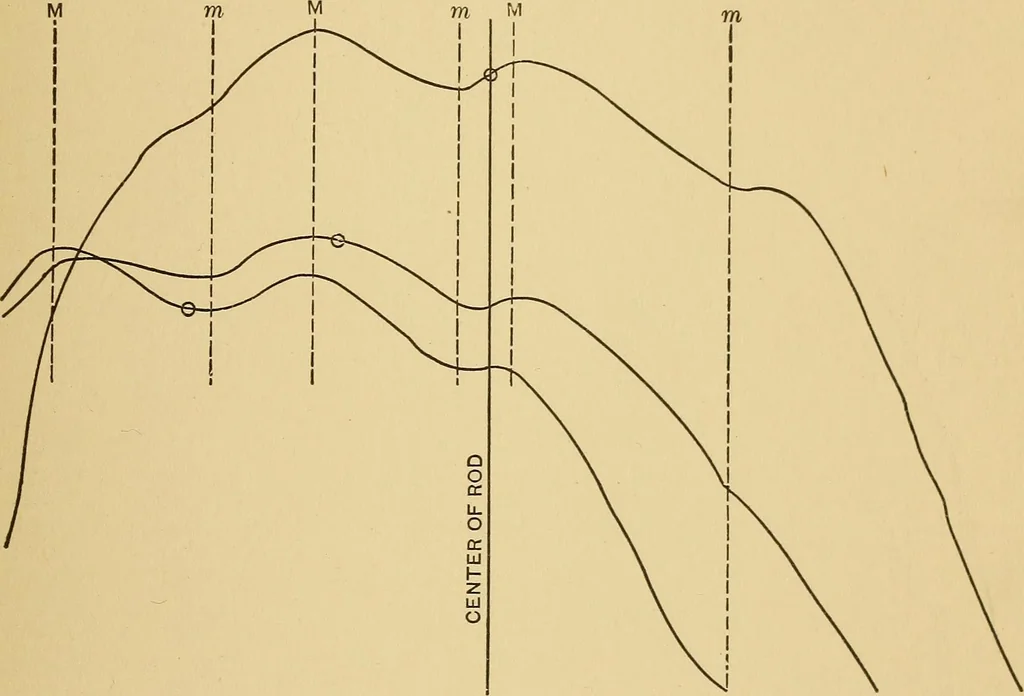

ght Bars. 61 Fig. 22 brings out the same main points in a different way. Atest rod was placed in a double bar and yoke magnetic circuit,and the flux along its length measured. Then the yokes andsolenoid were moved along 5 cm, relatively, to the rod, reclamped,and the flux distribution again… … Fig. 22.—Showing the Flux Distribution for a Portion of a Rod 65 cm long, used in a DoubleYoke Apparatus with 42-cm Coils for Three Different Relative Positions of Rods and Yoke. The small circles show position of the midpoint of magnetizing coil. seen two flux maxima and three flux minima. In the…
