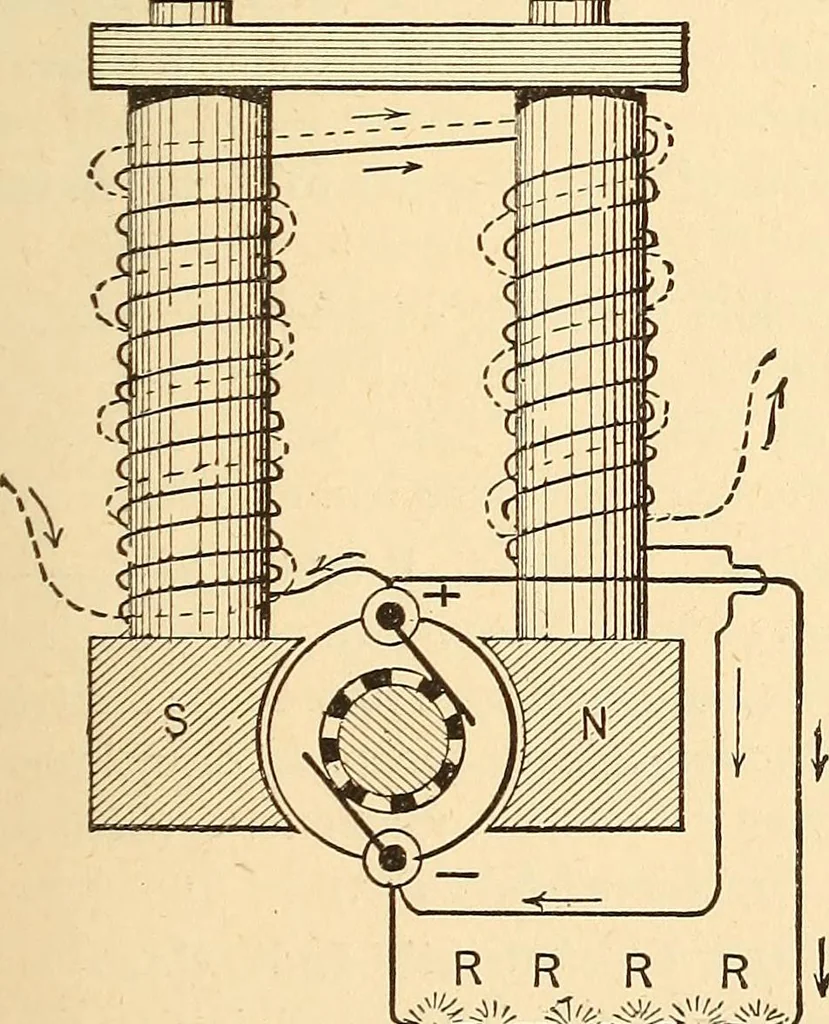

Fig. 35S- Series Dynamo. The dynamo shown in Fig. 355 is series con-nected. The armature is ring-shaped. Thearmature core consists of a ring made of sort ironwire. The field is bi-polar, and is obtained bythe use of four magnet coils and two consequentpoles. Machine, Dynamo-Electric, Shunt… … R R R R Fig 35 &• Shunt and Separately Excited Dynamo. the field is excited both by means of a shuntto the armature circuit, and by a current pro-duced by a separate source.A shunt and separately excited compound- wound dynamo-electric machine is shown in Fig.356. This machine maintains a…
