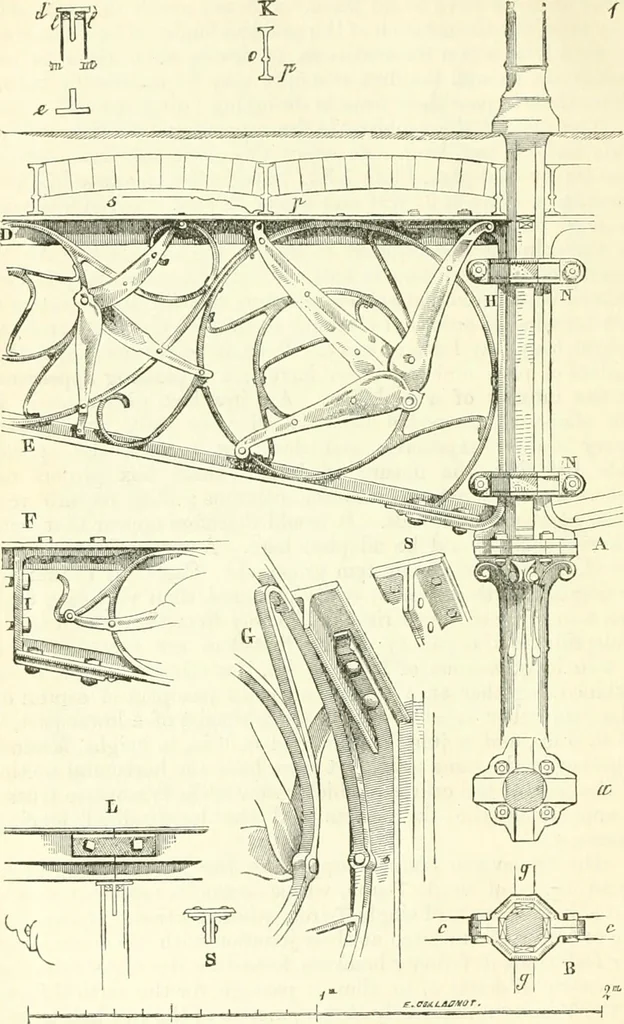

an under bar e of single T-iron, whose section is sho^\^l at e.These bars are connected at their junction with the columns, byvertical bands h, formmg brackets, forked for the upper fasteningas shown in detail G, to allow a passage for the vertical flangeof the T-iron d. Similarly at the junction… … Fio. 1.—Details of the Great Floor. LECTURE XIII. 123 (see detail f), bands, bent to an angle, receive the under T-irons,which abut against the face of these bands, and, forked, theupper T-iron, which alone is m one piece for the whole lengthof the beaiing. The two bands, of which one is shown at…
