Viollet-le-Duc, Eugène-Emmanuel, 1814-1879, Van Brunt, Henry, 1832-1903 · Boston : Ticknor and Co. · leaf 363

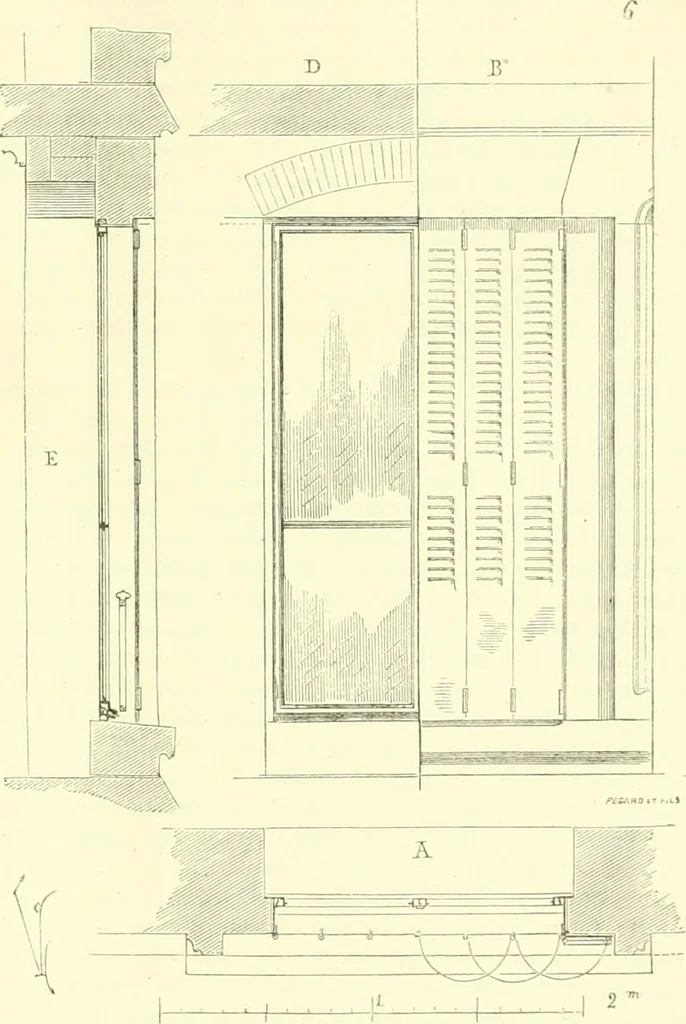

xhibit the section A, figure 6 ; in eleva-tion, the sketch b on the outside and D on the inside ; in section,the sketch E. We suppose these metal persiennes to be hungnot to the arris of the stone i-eveals, but to the metal reveals LECTURE XV111. 311 foiuiing a frame for the casements, and also for… … Fia, 6.—Details of Iron Windows. quite in theu place, since they are carried through at the heightof tlie springing of the relieving arches. The stone lintels areno longer weakened, and only form a facing. The string courseconnects them with the interior relieving arches. The ends of .^ 312…
Architecture
