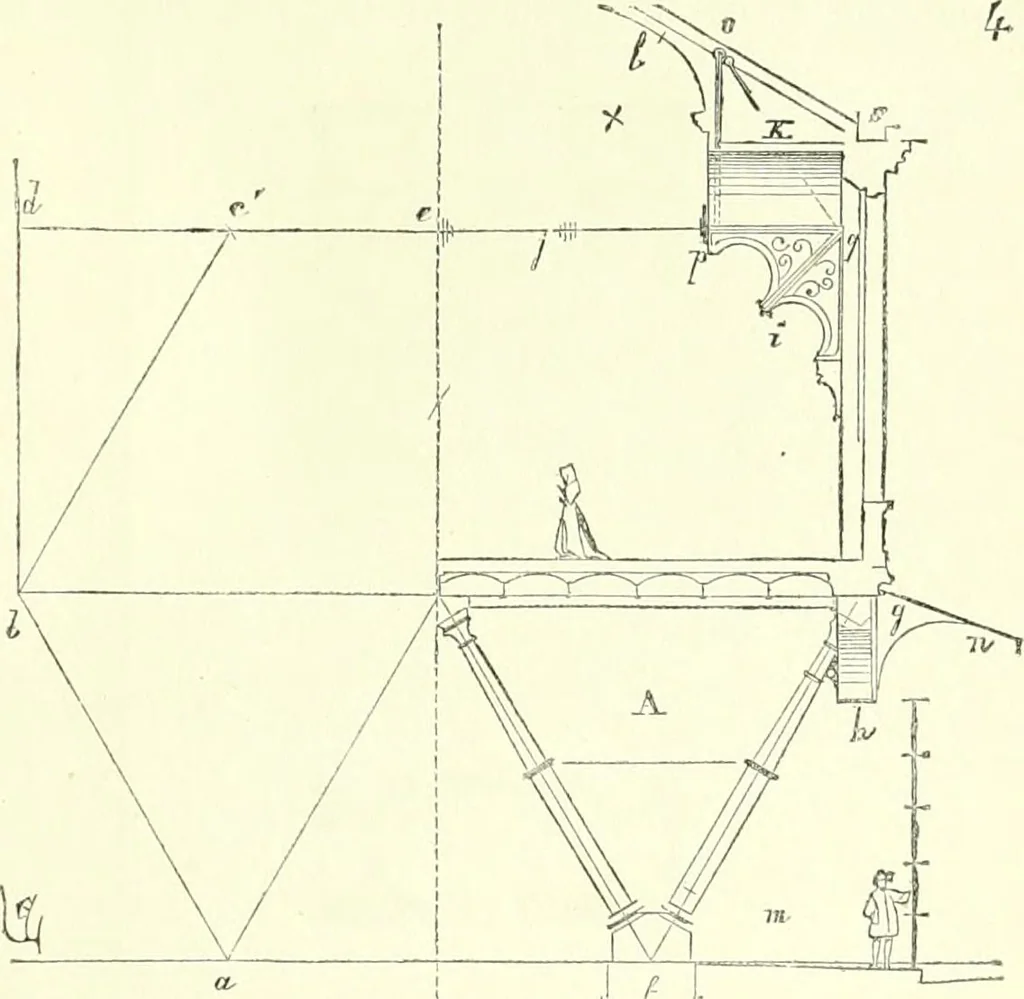

o another of which we turn barrel arches ofbrick. From the ends of the girders g may be suspended stirrupsfor the sujiport of cast-u-on shoes, to receive the springers of stonearches h, on which we shall build the walls of the haU, likewiseof masonry. Brackets of cast-iron i, in two parts, secured… … Fig. 4.—Method for the support of a Masonry Structure on obliquely set Iron Columns. essential condition will be to bed the blocks f, not on separatefoundations, but on solid transverse walls; for it is importantthat the feet of the columns f, g, a, h, should not be able tolessen their distance…
